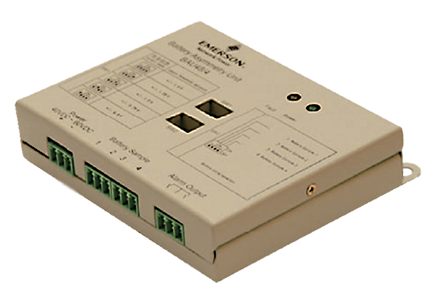

Vertiv NetSure BAU48/4
Battery Monitoring Unit


Vertiv NetSure BAU48/4

Veriv Products
NetSure Battery Monitoring Unit
Vertiv NetSure BAU48/4
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

The NetSure BAU 48/4 battery monitoring unit detects battery cell failures and open circuit or short circuit failures, activating a preset voltage difference alarm. The unit can be connected to Vertiv controllers (SCU, SCU+, ACU, ACU+).

The Battery Monitoring Unit 48/4 detects battery backup system failures by comparing the total and the central point voltages in battery strings. Battery cell failures, open circuit or short circuit failures causes voltage changes that activate a preset voltage difference alarm.

The unit can be connected to Vertiv Controllers (SCU, SCU+, ACU, ACU+).

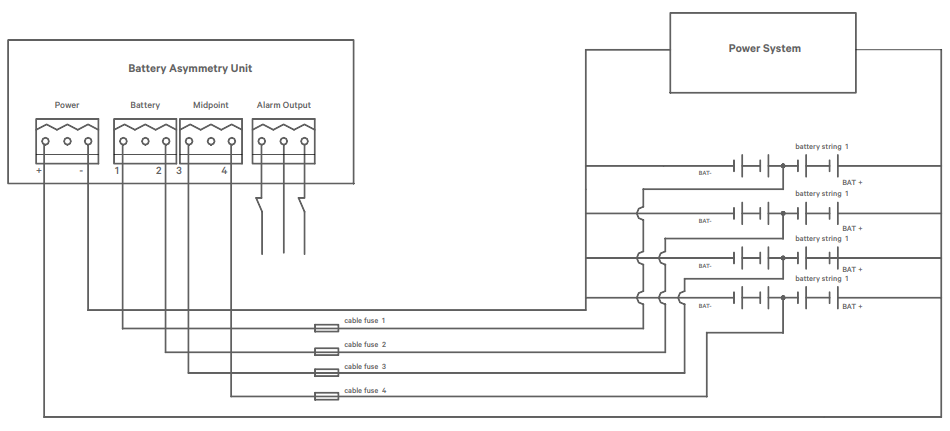

NetSure BAU 48/4 Diagram

Features:

  • Small size box – simple installation and add on to controller function
  • Easy-to-use and easy-to-wire
  • Add on controller function Controls up to 4 battery strings

Specifications:


NetSure BAU48/4 Specifications
Inputs
Input Voltage, Nominal 40 VDC to 60 VDC, <25 mA
Battery Input Voltage Measurement 4 inputs, 0 VDC to 60 VDC
Alarm Output
Relay NO or NC
Relay Capacity Max Power: 60 W
Max Voltage: 60 VDC
Max Current: 2 A
Control and Monitoring
LED Green - Power ON
Red - Fault
Mechanial and Environmental Parameters
Dimensions (H x W x D) 23 × 98 × 76 (mm) / 0.9 × 3.9 × 3.0 (inches)
Weight 0.2 kg / 0.4 lbs
Operating Temperature Range 10ºC to 50ºC / -14ºF to 122ºF
Relative Humidity 95%
Accessories 4 battery fuses, 5A

Documentation:

Download the Vertiv NetSure BAU48/4 Datasheet (.PDF)
