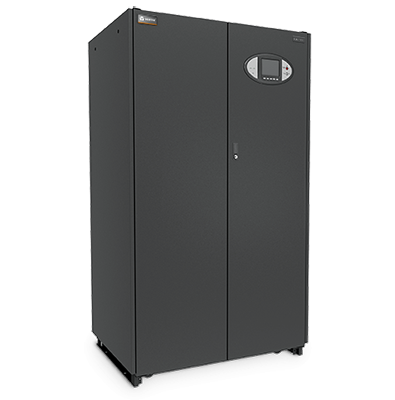

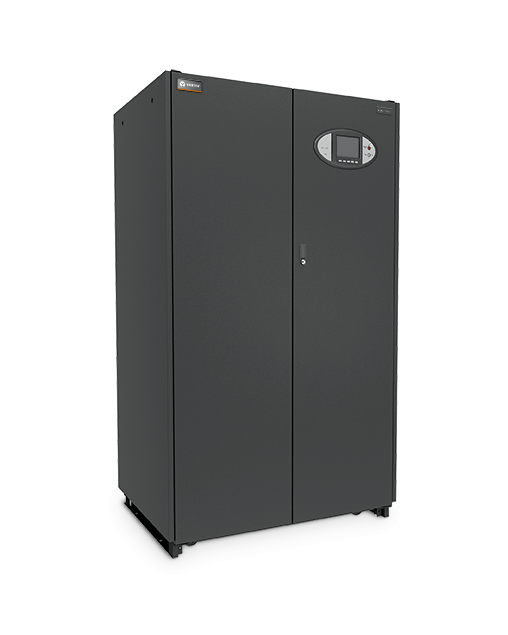

Vertiv Liebert PPC Distribution Cabinet, 150-225kVA
Contact us for Pricing!
Vertiv Liebert PPC Distribution Cabinet, 300kVA
Contact us for Pricing!
Vertiv Liebert PPC Distribution Cabinet, 430kVA
Contact us for Pricing!
Vertiv Liebert PPC Distribution Cabinet, 800kVA
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Best Suited For:
  • Banking, Financial and Insurance
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Retail and Wholesale

Power conditioning and distribution cabinet that offers the benefits of a custom-tailored system, with the convenience and cost savings of a pre-packaged, factory-tested system. Housed in a single, self-contained cabinet, it combines distribution, computer-grade grounding, isolation, and power monitoring to provide the protection your vital computer or communications equipment demands.

The Liebert PPC second generation distribution cabinet offers the benefits of a custom-tailored power system, with the convenience and cost savings of a pre-packaged, factory-tested unit. Housed in a single, self-contained cabinet, it combines distribution, computer-grade grounding, isolation, and power monitoring to provide the protection your vital computer or communications equipment demands. Available in 15-225 kVA capacity systems for raised floor applications and top-exit models, the Liebert PPC offers flexible expansion capabilities to fit growing sites. The 300kVA, 430kVA and 800kVA with Square D I-Line panelboard distribution extends the Liebert PPC line giving you more capacity in one cabinet.

Power Distribution for the way you need it

Vertiv has innovated their proven, floor-mount power distribution solutions to meet the needs of the modern data center. The Liebert PPC off ers the benefits of a custom-tailored power system, with the convenience and cost savings of a pre-packaged, factory-tested unit. From single stage distribution strategies to extensive two-stage approaches, the Liebert PPC line of PDUs is entrusted to deliver reliable, cost eff ective and flexible data center power distribution.

This self-contained system combines distribution, computer-grade grounding, isolation, and power monitoring to provide the protection vital systems demands. Available in 15-225 kVA capacity systems for raised floor applications and top-exit models, the Liebert PPC off ers integrated panelboards with flexible expansion capabilities that are ideal for single-stage distribution configurations.

The 300 to 800kVA models can form the perfect backdrop to support larger implementations that may employ a two-stage distribution strategy. These off er the capacity and breaker flexibility needed in one distribution cabinet to feed the remote power panels downstream. Several innovative alternatives exist.

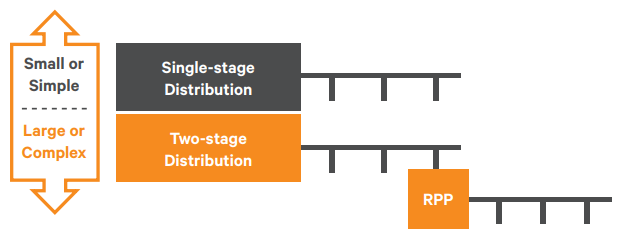

Single-stage and Two-stage Distribution

Flexibility, Higher Availability, Lowest Total Cost Of OwnershipFlexibility

  • Improved Power Quality
  • Computer-Grade Grounding
  • Metering and Monitoring

Higher Availability

  • Handles Non-Linear Loads
  • Expansion Capability
  • Location Flexibility
  • UL and ULc Listed as a Complete System
  • Match distribution system to business requirements

Lowest Total Cost Of Ownership

  • Space Savings
  • Easy Installation
  • DOE TP-1 Listed Isolation Transformer

An Ideal Solution for Distributing Power in:

  • Raised floor data rooms
  • Non-raised floor/slab rooms
  • Off ice areas
  • Laboratories
  • High-tech manufacturing sites
  • Process control rooms
  • Medical imaging suites
  • Grouped workstations

Power Distribution Best Practices

Vertiv provides leading power distribution solutions across the entire power path, from the floor to the rack. The trend for larger sites has been to adopt two stage distribution that better supports the growing number of circuits in a data center.

Power Distribution Best Practices

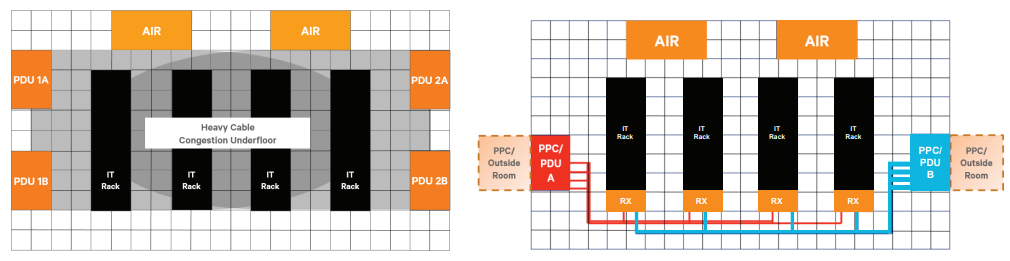

No Raised Floor? No Problem.

Just select the top-exit option. By placing the input and output conduit connections at the top of the unit, the top-exit Liebert PPC brings the benefits of high quality packaged power systems to non-raised floor applications. Plus, the unit retains the normal bottom output cable exit for easy relocation and expansion flexibility.

Ideal for slab data centers, off ice environments, laboratories, manufacturing technology, process control rooms, medical imaging suites and more.

Leverage the Power of a Package

Compared to a conventional power distribution system built at the site and using multiple interconnected components, the Liebert PPC provides a much smaller footprint, reduced installation time, less cost and easier service access.

Benefits that make a difference

  • Main input breaker with low voltage shunt trip provides optional primary transformer overcurrent protection and control
  • Higher efficiency than standard transformers
  • Supplemental transformer protection guards from abnormally high winding temperature
  • Individually enclosed panelboards with panelboard main breaker and individual isolated neutral and ground busbars distribute high quality power
  • Output conduit landings for each output panelboard facilitate many dedicated branch circuits
  • Withstand neutral currents of at least 1.73 times full load safely
  • Optional shielded output cables for each load reduce EMI and RFI

Features and Benefits:

Benefits

  • Improved Power Quality — Results in optimum equipment operation, reducing downtime and extending service life
  • Computer-Grade Grounding — The Liebert PPC automatically establishes a single point ground to meet major manufacturers’ recommendations and the requirements of the National Electric Code
  • Monitoring — Built-in metering and alarm annunciation with communication capabilities to Liebert centralized monitoring
  • Handles Non-Linear Loads — Fully compatible with the non-linear loads and other electronic equipment
  • Expansion Capability — add-on panelboards, optional Liebert EXC™ and flexible cabling can be installed with minimal disruption to meet growing needs
  • Location Flexibility — The unit can be easily relocated to protect your investment
  • UL and ULc Listed as a Complete System — Meets safety requirements for fast, hasslefree inspection and building code approvals
  • Space Savings — Compact single cabinet conserves valuable floor space
  • Easy Installation — Single input cable connection reduces installation time and cost.
  • Can work on "live" circuits using isolated distribution feature

Features

  • Packaged power conditioning and distribution
  • Built-in metering and alarms, and optional centralized monitoring
  • Expandable with additional panelboards and flexible cabling
  • TP-1 Listed Isolation Transformer— Provides increased efficiency
  • Isolated distribution (optional on 300-800kVA)

The Standard for Powering Critical Systems

Standard Features

  • True Front access only design
  • Convection cooled y DOE 2016 TP-1 Listed isolation transformer
  • Main Input CB
  • Flexible Distribution Options (Subfeeds, Panelboards, I-Line options)

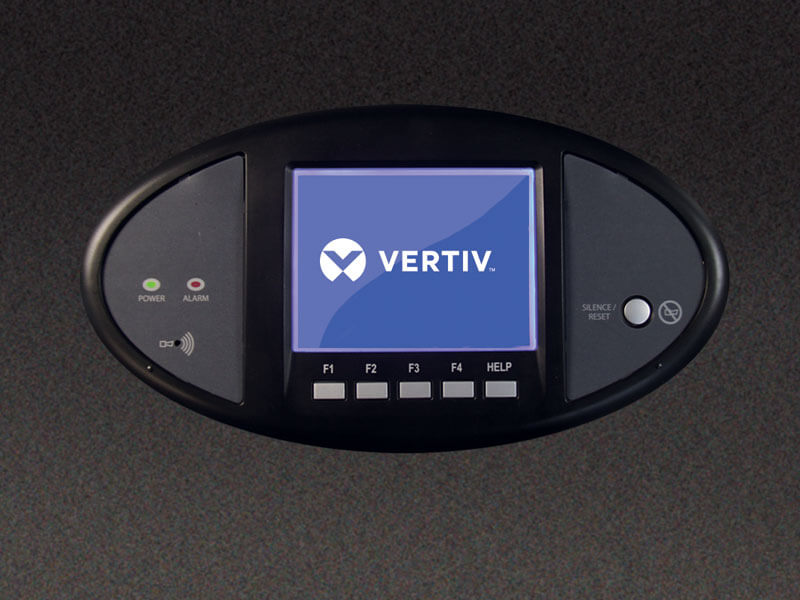

  • Metering with Display
  • UL60950
  • Non-Linear load compatibility

Optional Features

  • Expansion Cabinets for additional distribution
  • TVSS
  • K-Rated transformers to withstand high harmonic loads without derating
  • Panelboard and Subfeed monitoring with <2% accuracy
  • Dual output voltage taps for ultimate flexibility (415V and 208V taps)
  • Isolated Distribution options
  • Compartmentalization of output subfeed breakers and monitoring components

Configurations for Large Deployments:

Meeting Demands for Capacity, Footprint, Flexibility and Cost

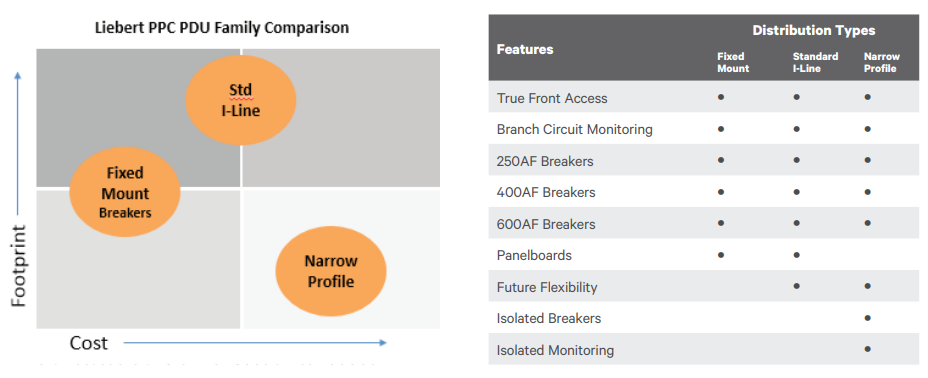

The Liebert PPC can be configured in various distribution configurations to meet specific application requirements for larger capacity demands. Each is optimized around key factors, such as footprint, flexibility, safety and scalability, while providing reliable, cost effective power distribution. These are usually applied using 300kVA systems and above most used in two stage distribution.

Meeting Demands for Capacity, Footprint, Flexibility and Cost

Large Liebert PPC Options

I-Line Panelboards
Using I-Line panelboards offers excellent power flexibility. Most of the time that added agility requires a relatively larger footprint and a higher cost.

Fixed Mounted Breakers
Projects driven by footprint and economics should consider fixed mounted distribution breakers. Vertiv offers several options that can save footprint and money over traditional solutions.

Narrow Profile
For an advanced, forward thinking configuration the Narrow Profile Liebert PPC uses a rotated transformer section to reduce the footprint significantly. From that configuration we can offer either fixed output breakers or our innovative compartmentalized isolated distribution system. Perfect for safe, “live” circuit installs and maintenance.

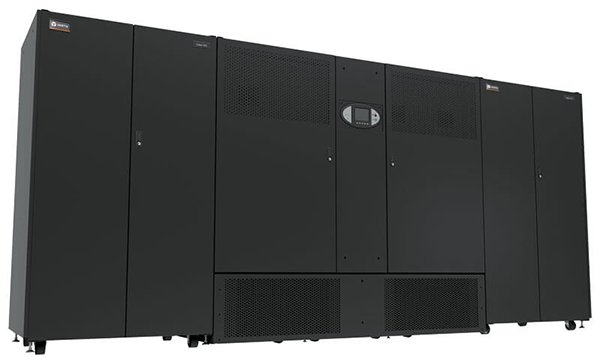

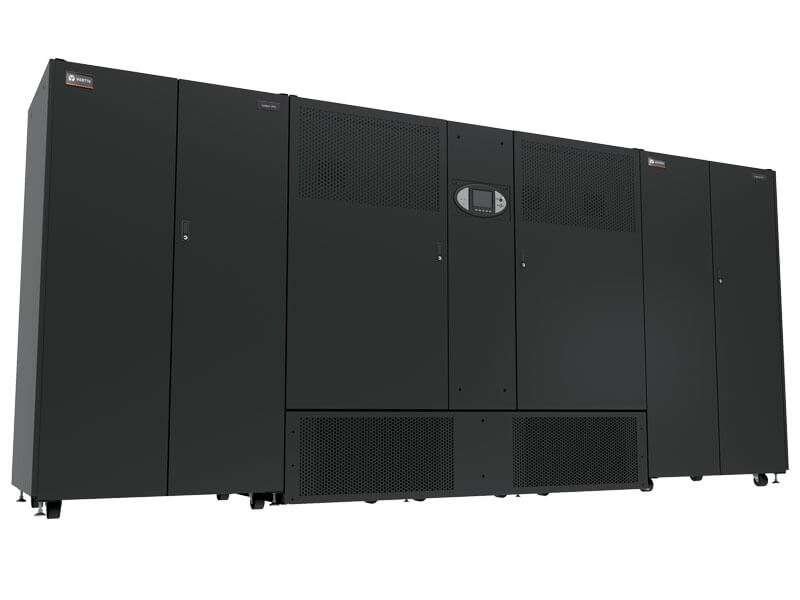

Liebert PPC - 800kVA Bottom and Top Entry/Exit
Liebert PPC - 800kVA Bottom and Top Entry/Exit

Narrow Profile Liebert PPC with Isolation Distribution

Narrow Profile Liebert PPC with Isolation Distribution

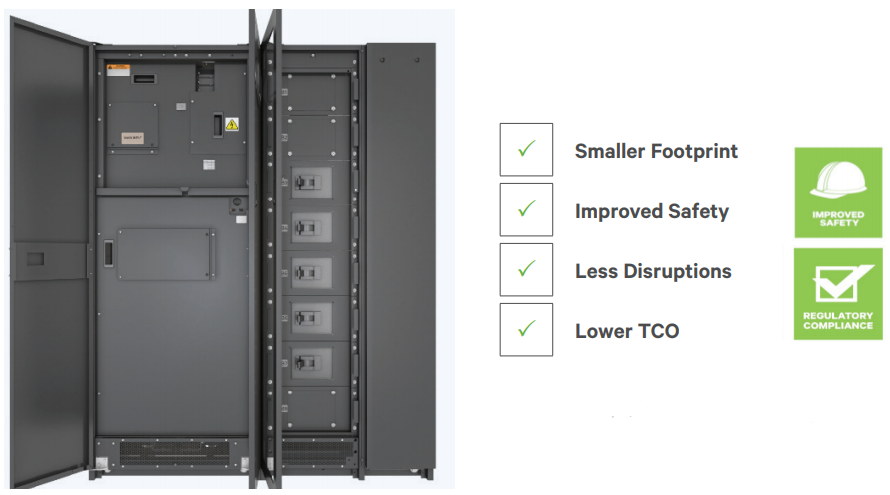

Optimized Isolated Distribution

Innovative Features Set a New Standard


Improved Safety

  • Isolated load-side breaker compartments provide isolation between the line side and load side of the breakers using non-conductive polycarbonate material. Impact: Maintains service and IR scan without taking down the critical load, limits exposure to hazardous arc flash potential
  • Isolated monitoring components allows for maintenance and service without powering down critical loads
  • IR scan ports are easily accessible to allow scans of all transformer/output bus connections, while reducing PPE requirements
  • Plug-in breakers with electronic trip settings enhance flexibility

Lower Capital Cost

  • Isolated compartment positions enable a “growth as you go” approach to breakers. Expand only as customers or loads require
  • Innovative design allows adding up to (8) 600AF or (10) 250AF plug-in breakers without powering down the PDU
  • Space-saving footprint enables location flexibility and more revenue generating IT equipment
  • Optional dual output voltage taps (415V and 208V) provide added flexibility to meet new loads

Intelligent Power:

System Monitoring Enhances Visibility and Performance

Panelboard Monitoring

The integral Current Plus Monitoring (CPM) optional display monitors the current and voltage of the panelboard. The display includes a monochrome LCD, power and alarm LEDs, audble alarm, and a silence push button. It provides true RMS measurements and battery packed memory.

Monitored parameters include:

  • Voltage - Line-to-Line
  • Voltage - Line-to-Neutral
  • Neutral Current
  • Ground Current
  • kVA
  • Power Factor
  • Voltage Total Harmonic
  • Current Total Harmonic
  • Distortion (THD)
  • Crest Factor

Branch Circuit Monitoring

Advanced monitoring is available through the optional Liebert Distribution Monitoring (LDMF) display. The option provides a large LCD screen that allows monitoring for subfeed breakers as well as panelboards and branch breakers. Alarm data may be viewed from this display for up-to-date breaker status. It provides true RMS measurements and battery backed memory.

Monitored parameters are the same as those for the CPM monitor, plus for each branch circuit.

  • Phase current
  • kW-hours
  • kW
  • Percent load

Centralized Monitoring

An optional Liebert Sitescan interface that allows centralized monitoring of Liebert PPC.

A Liebert IntelliSlot Unity communications card may be installed to allow monitoring through a Building Management System (BMS). The Unity card provides several protocol options (SNMP, Modbus, BACnet) in one card.

  • Voltage - Line-to-Line
  • Voltage - Line-to-Neutral
  • Neutral Current
  • Ground Current
  • kVA
  • Power Factor
  • Voltage Total Harmonic
  • Current Total Harmonic
  • Distortion (THD)
  • Crest Factor

System Monitoring

Central Monitoring Interface

Liebert PPC are compatible with our Liebert SIteScan centralized monitoring systems, allowing single point monitoring and alarm of power conditions. These microprocessor-based systems provide historical data on room conditions for future requirement planning and troubleshooting. In addition, for communication of monitored parameters and alarm information to other monitoring systems. A Liebert IntelliSlot Unity card can also be used to enable cost-effective monitoring of a Liebert PPC by your facility or network monitoring systems. The Unity card provides several protocol options (SNMP, Modbus, BACnet) in one card.

Event Management and Reporting

Liebert SiteScan Web will show you exactly where the problem — not some cryptic message that will leave you guessing. Events and alarms associated with a specific system, area or equipment selected in the navigation tree are displayed. This view allows you to monitor alarm or event information geographically, as well as to acknowledge event, sort events by category, actions and verify reporting actions.

Data Analysis and Trending Reporting

With Liebert SiteScan Web you get powerful tools to analyze data and use it to prevent specific problems form occurring again. The operator can view trends by using the navigation tree and selecting the "trends" button in the graphic window. Users can create custom trend data that consist of one or more multiple data points.

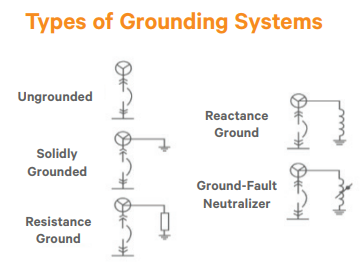

Types of Grounding SystemsCritical Systems, Critical Care Additional Services for Added Protection

Preventative and Emergency Support

Maximizing the performance and efficiency of your data center's uninterruptible power supply (UPS) and other power distribution systems requires systems be properly maintained by factory-trained technicians. Trust Vertiv™ Services to take your critical maintenance to the next levelproactive maintenance that can significantly extend the life of your power systems, decrease your capital investment, optimize system efficiency and effectiveness, and increase overall system availability.

  • 24x7 critical maintenance response
  • Proactive service, extends system life
  • Improved MTBF and MTTR
  • Local factory trained engineers ready to respond
  • Parts, expertise, satisfaction

Grounding Studies

A grounding system is one of the most important, yet neglected, segments of a critical facility’s electrical power system. Testing it is not only prudent, it is required by the National Electrical Code. Grounding studies ensure protection from low-level arcing ground faults that can destroy your switchgear in seconds and put personnel in danger. Vertiv’s grounding studies include the required tests and inspections needed to verify your system’s integrity.

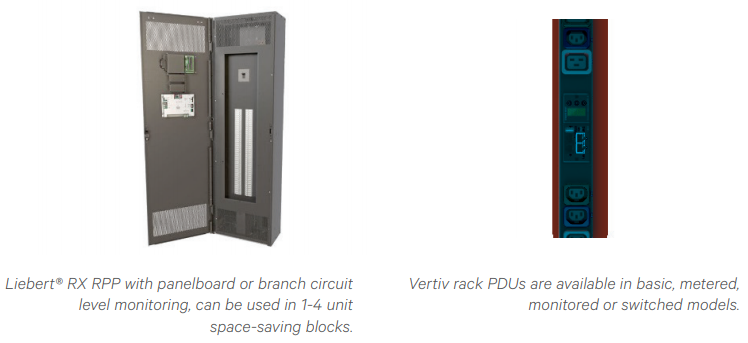

Full Range Power Distribution

For all your floor or rack mounted power distribution needs, remember that Vertiv has many innovative and effective solutions. Shown are a few examples.

Full Range Power Distribution

Views:


Liebert PPC – 150-225kVA
Liebert PPC – 150-225kVA

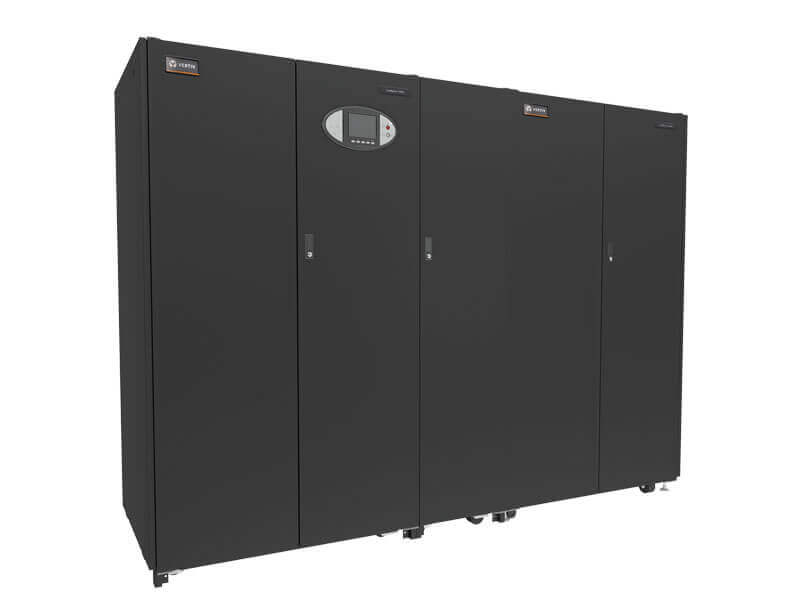

Liebert PPC – 430kVA
Liebert PPC – 430kVA

Liebert PPC - 800kVA
Liebert PPC - 800kVA


Open View

Monitor


Documentation:

Download the Vertiv Liebert PPC Distribution Cabinet Datasheet (.PDF)
