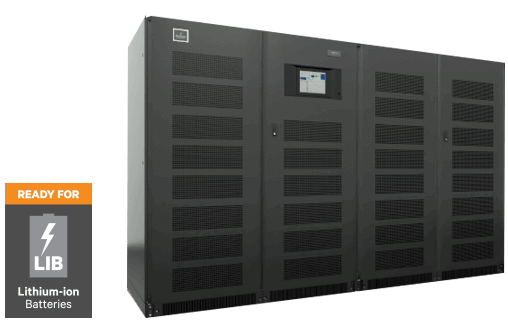

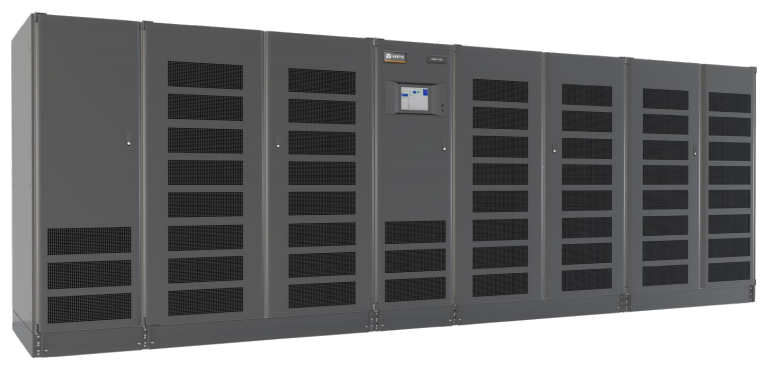

Vertiv Liebert NXL UPS
1100kVA / 1100kW UPS - Maximum UPS Protection for Large Data Centers


Vertiv Liebert NXL UPS

Veriv Products
Liebert NXL UPS
Vertiv Liebert NXL 250-400 kVA
225-360 kW; 480/575/600 volts Input Voltage; 480/575/600 volts Output Voltage; Up to 94% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 500 kVA
450 kW; 480 volts Input Voltage; 480 volts Output Voltage; Up to 92% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 625 kVA
562.5 kW; 480 volts Input Voltage; 480 volts Output Voltage; Up to 92% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 625 kVA
625 kW; 480/575/600 volts Input Voltage; 480/575/600 volts Output Voltage; Up to 92% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 750 kVA
675 kW; 480/575/600 volts Input Voltage; 480/575/600 volts Output Voltage; Up to 92% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 800 kVA
800 kW; 480 volts Input Voltage; 480 volts Output Voltage; Up to 94% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 1100 kVA
1100 kW; 480/575/600 volts Input Voltage; 480/575/600 volts Output Voltage; Up to 94% Efficiency; 3 or 4 wire
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Best Suited For:
  • Banking, Financial and Insurance
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Retail and Wholesale

Provides reliable power protection and advanced technology for high power applications. Offers excellent dynamic performance, with the ability to handle virtually any input condition while still providing computer grade output to critical loads.​

Please click on the models below for more information, manuals and technical specifications. Liebert NXL uninterruptible power supply (UPS) provides reliable data center power protection and advanced technology for high power applications. This UPS adds dynamic performance to data center design, handling virtually any input condition while still providing computer-grade output to critical loads. The Liebert NXL UPS is available in both single module and multi-module systems. Capacities include 250, 300, 400, 500, 625, 750, and 1100 kVA. Unity Power Factor as well as 0.9 PF load ratings are available. Voltages include 480, 575, and 600. Matching battery cabinets and maintenance bypass cabinets provide a complete power protection solution. Compatible with Lithium Ion battery systems.

UPS protection for medium and large facilities Single and multi-module systems with latest generation technology Color touch-screen controls Matching battery cabinets and maintenance bypass cabinet.

Maximum Protection And An Energy Efficient Design

Every business has unique needs for their data center. For those who deem maximum protection as their top concern, look for a robust UPS designed to provide features to maintain quality power at all times. And for those requiring maximum protection and low total cost of ownership - there is the Liebert NXL 1100 kVA UPS.

Now There’s A High Power Liebert UPS That Provides Maximum Protection

A key component in a Maximum Protection strategy, Liebert NXL 1100kVA UPS systems from Vertiv utilize the latest power protection technology to create a new level of reliability with efficiency options for data center applications.

The UPS has a robust design engineered to provide unmatched reliability for businesses focused on maximum protection. Its fault-tolerant design utilizes magnetics that provide full DC fault isolation and the capacity to support output overloads even when the DC stored energy source is disconnected. This makes the Liebert NXL 1100kVA UPS uniquely applicable to different forms of DC stored energy, such as large flooded batteries, flywheel systems and emerging high rate batteries.

For full compatibility with modern server power supplies the Liebert NXL 1100kVA UPS supports a unity power factor load without need for derating, supplying 1100kW of output power. The Liebert NXL 1100kVA UPS also offers the highest level of operational efficiency within the Maximum Protection design platforms.

Liebert NXL

Maximum Protection

Liebert NXL UPS is the right choice for critical, high power applications:

  • Listed and labeled to UL1778 fourth edition. The fourth edition is more harmonized with internationalized standards and requires testing for both safety and performance resulting in a more reliable UPS.
  • Fuse-less bypass design allows fault coordination of distribution system.
  • Handles a wide window of input voltage and frequency, including power from backup generators.
  • Battery ground fault isolation results in normal system operation even under battery ground fault conditions - the system does not go to bypass. An alarm will direct the user to take corrective action, but operation is maintained.

Liebert NXL UPS Stack-Up PerformanceLiebert NXL UPS Stack-Up Performance
Robust design allows operation at 100% load under a “stack-up” of conditions that would require other systems to de-rate their output or compromise system availability. Simultaneous conditions such as clogged air filters, high ambient temperature, high altitude, fan failure, and low or high line conditions have been mitigated to ensure full rating at 100% operating loads.

  • High inverter overload rating allows the UPS to stay on inverter delivering full regulated power, even in overload situations.
  • Continuous duty rated Bypass Static Switch ensures maximum fault clearing capability in case of extreme overload or downstream short-circuits.

Higher Availability:

  • Unity power factor load performance capacity @ full kVA rating.
  • 480/575/600VAC input and output options.
  • 100% rated continuous duty bypass static switch - unfused.
  • Superior handling of present and future leading power factor computer loads.
  • Short Circuit Withstand Rating (SCWR) withstand capability: 480V - 100kA, 125kA; 600V - 65kA, 100kA
  • Color touch screen display improves user interface and reduces risk of human error.
  • Built-in galvanic isolation provides proper grounding without requiring a neutral.
  • Excellent dynamic performance.
  • Liebert ActiveStar Digital Signal Processor (DSP) controls — all digital controls.
  • Multi-module configurations provide for greater total capacity and module redundancy.
  • Module level redundant components— fans and power supplies.
  • Generator and utility friendly with low input current distortion.
  • Highest documented MTBF > 5 million hours.

Withstand Tested and Labeled
Liebert NXL is the only UPS in its class that is withstand tested and labeled by UL - up to 125kA @ 480V, 100kA @ 600V, and 200kA for modules with remote breakers.

Low Total Cost of Ownership


Active Inverter Eco-Mode Capability Pushes Efficiency To 98%.

When Active Inverter Eco-Mode operation is selected, the load is powered from the bypass source and remains there as long as the bypass source frequency, slew rate and voltage are within the adjusted operating parameters. During this mode of operation, the inverter remains operating with the ability to instantaneously assume the load. Should the bypass source go outside the adjusted limits, the static bypass switches turn off, isolating the load from the bypass while the inverter assumes the full critical load.

This increases overall efficiency when the voltage and frequency of the bypass source are within acceptable parameters. Once the bypass source returns to within acceptable parameters, Active Inverter Eco-Mode operation continues.

  • Up to 98% efficiency when operating in Active Inverter Eco-Mode. Up to 94% operating efficiency in dual conversion mode.
  • Optimized part-load efficiencies.

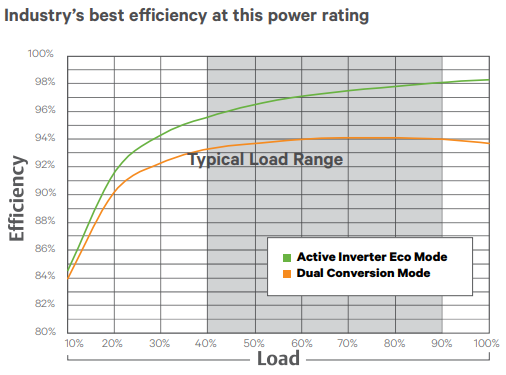

Industry’s best efficiency at this power rating

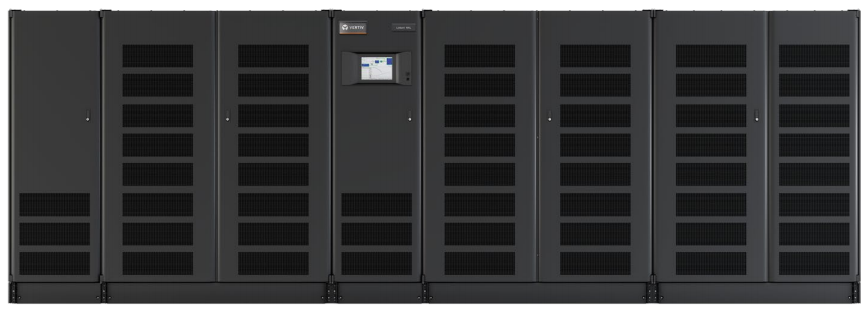

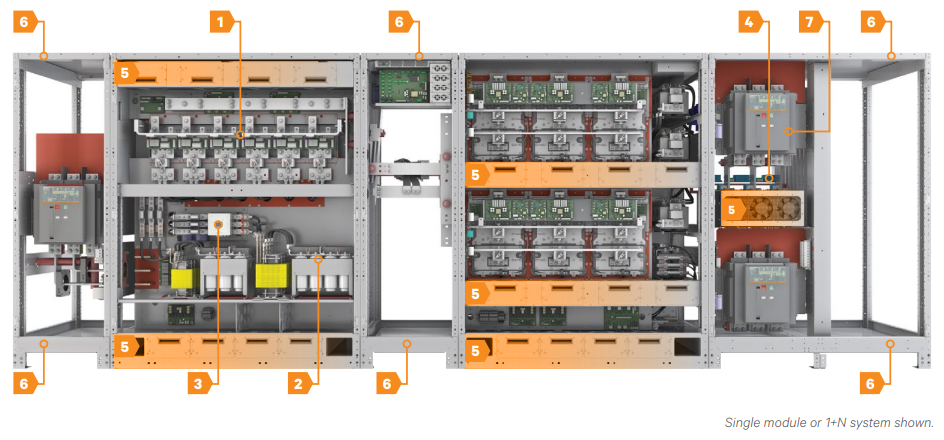

Designed to reduce time and cost of installation and maintenance:

  • Front access for installation and service.
  • Internal bypass backfeed breaker avoids the complication of a device in the distribution switchgear that must be controlled from the UPS but trip power provided from a source energized when the bypass is deenergized.
  • Reduced installation and service time.
  • Improved cable access results in faster installation.
  • Built-in battery cabinet breaker isolates string for ease of service.
  • Battery cabinet with interconnecting bussing reduces site cabling.

Features and Benefits:


Benefits

  • Internal cable wiring simplifies installation
  • Redundant components increases reliability
  • Superior handling of present and future computer loads
  • Color touchscreen controls improve user interface and reduce risk of human error
  • Excellent dynamic performance
  • Generator and utility friendly
  • Front access provides easy installation and service
  • Compact cabinets require less floorspace
  • Built-in battery cabinet breaker isolates string for ease of service

Features

  • Accomodates multiple stacked-up conditions without disrupting power to the load
  • Top or bottom cable entry
  • Up to 98% efficient in Intelligent Eco-Mode and 94% in double conversion mode.
  • Single and multi-module systems
  • Color touchscreen controls
  • Up to 0.95 leading power factor without derating
  • High input fault current capability
  • Matching battery cabinets and maintenance bypass cabinets
  • Ship-ahead I/O section can be installed before UPS installation
  • LIFE Services for remote monitoring and proactive services delivery
  • ENERGY STAR qualified

Capacity:

More Ways To Achieve The Level Of Protection And Reliability You Need

With unity power rating - 1100kVA / 1100kW - Liebert NXL UPS has the highest capacity of any monolithic UPS in the industry. The result is real savings versus installing multiple smaller units to achieve capacity with a reduction in requirements for floorspace, maintenance and installation costs. In addition, the UPS is available in multi-module configurations for Tier levels 2, 3 and 4, ensuring the right level of power redundancy for any critical application.

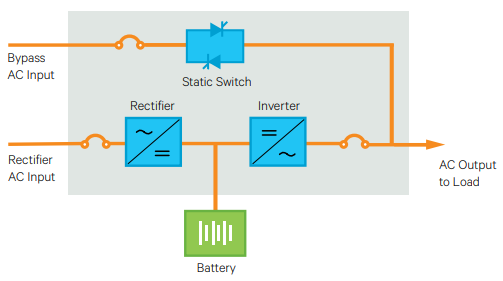

Single-Module Configuration

Single-module systems provide a basic protection configuration. The critical bus is powered by a single UPS system with bypass capability.

Single-Module Configuration

Multi Module Configurations

Liebert NXL UPS 1100kVA units can be paralleled to obtain higher total capacity or to obtain redundancy. Many facilities have added redundant UPS modules to their critical power systems, to meet the need for maximum reliability. A redundant UPS system adds fault management capability by preventing a single module or single battery failure from taking down the critical output bus. Use of redundant UPS modules also improves maintainability since one UPS module at a time can be taken off-line for service without shutting down the whole system.

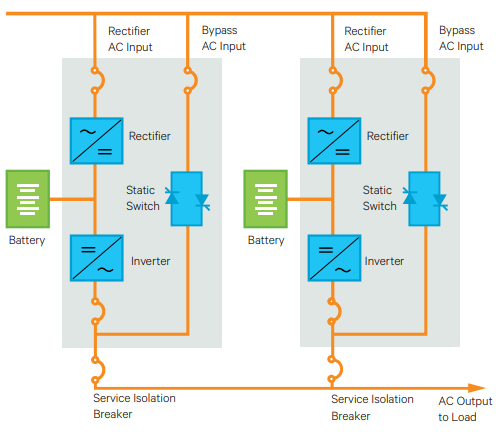

1+N Parallel Configuration - Up To 6 Modules

  • Paralleling of single UPS units, offers easy scalability for capacity or redundancy.
  • Each unit has its own bypass static switch.
  • Provides multi-module operation without the need for a system control cabinet.
  • Bypass sharing is assured through integral bypass load sharing inductors.
  • System capacity is maintained even with unequal site wiring lengths.
  • System level commands may be given at any module.

1+N Parallel Configuration - Up To 6 Module

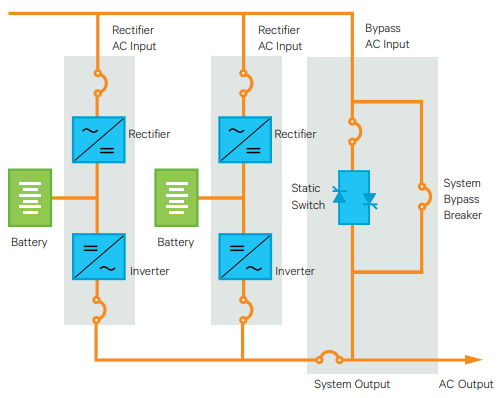

N+1 Parallel Configuration - Up To 6 Modules

  • Paralleling of units allows planned expansion with a fully rated centralized static switch.
  • System Control and Bypass Static Switch can be easily integrated into any switchgear solution.
  • Continuous rated fuseless Bypass Static Switch offers high fault clearing capability and high availability.
  • System level commands are given at the System Controls.

N+1 Parallel Configuration - Up To 6 Modules


Flexibility:

  • Available in single-module and multimodule configurations with both single and multi-bus distribution y Bypass withstand rating achieved without fuses to allow coordination with downstream feeder circuit breakers y Multiple voltages and grounding configurations available y Compatible with switch mode and traditional power supplies and rated 1000kW for a 0.95 leading power factor load y Liebert® IntelliSlot® communication cards for site monitoring and management

Liebert NXL UPS Factory Installed Options

  • Up to two programmable relay boards – 8 channels of status and alarm contacts on each relay board.
  • Up to two input contact isolator boards – 8 user programmable alarm inputs each.
  • Emergency Module Off (EMO).
  • Display Keylock.
  • Load Bus Sync for multi-bus systems.
  • Power Tie for multi-bus systems.

Liebert NXL UPS Field Installed Options

  • Remote Alarm Status Panel.
  • External Battery Temperature Sensor.
  • Seismic Anchoring Kit.

The Liebert NXL 1100 UPS is Ideally Suited For:

  • Enterprise data centers
  • Web Hosting
  • Co-location
  • Government
  • Healthcare
  • Finance
  • Education
  • Insurance
  • Any other application requiring high levels of power availability and computer-grade power quality

Liebert NXL UPS: Unmatched Flexibility Features

  • Highest withstand rating - 480V: 100kA standard, 125kA optional; 575V & 600V: 65kA standard, 100kA optional.
  • High resistance ground compatible.
  • Input/Output voltages of 480, 575, 600VAC.

System-Matched Ancilliary Products Enhance UPS Flexibility And Availability

A comprehensive line of ancillary products provides a matched, tested and reliable power line-up, customized for your system and site needs.


Liebert NXL UPS Matching Battery Cabinet

Liebert NXL UPS Matching Battery Cabinet

  • System matched for all Liebert NXL systems.
  • Optional Albér integrated battery monitoring.
  • Breaker for safe battery service without shutdown.
  • Parallelable for extended runtime or redundancy.
  • Internal bussing between attached cabinets to minimize site wiring.
  • Integral thermal measurement in each cabinet for temperature compensated charging and per cabinet thermal runaway prevention.

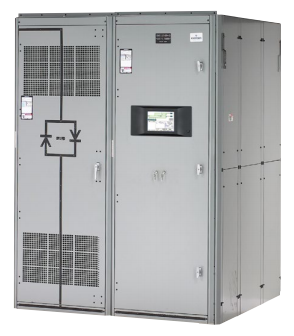

Liebert NXL UPS System Control Cabinet

Liebert NXL UPS System Control Cabinet

  • For N+1 parallel systems, the System Control Cabinet controls the operation of the system, and also contains the system Static Bypass Switch.
  • Integrated into the switchgear of the customers choice.
  • Allows control of parallel systems with up to 6 UPS units.
  • Drawout design Bypass Static Switch is continuous duty type to ensure highest availability.
  • Advanced color touch screen display allows easy monitoring and operation of the entire parallel system.
  • 200,000kA withstand for static switch.
  • Up to 5000A at 480V.

Visibility:

Monitoring And Control Capabilities That Keep You Informed And In Charge

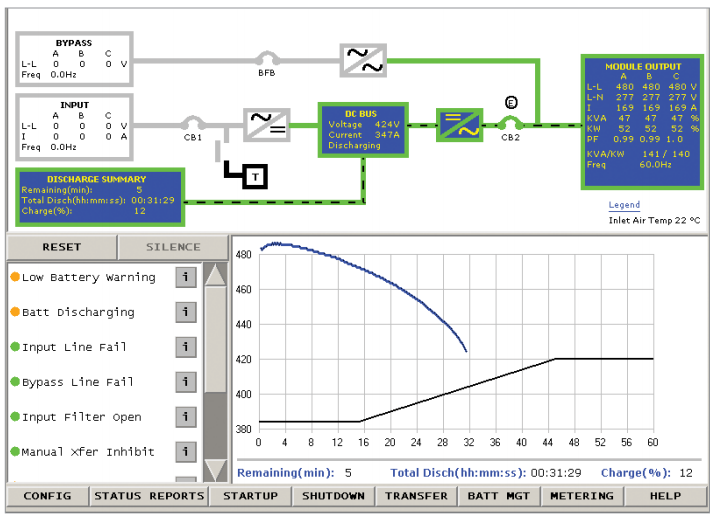

Integrated Control And Monitoring Main Display Screen

Liebert NXL UPS has a large, color touchscreen display that leads the user through logical menu sequences to view needed information. The color, backlit, micro-processor based display is autonomous of the system control logic. The simple menu-driven system virtually eliminates the possibility for human error. The large touch screen display can be set to show a system one-line diagram or mimic panel. It can also display advanced metering information, alarms, configuration or start-up/shutdown/transfer information.

  • Quickly check operational status.
  • Monitor power flow through UPS along with all meter readings.
  • Menu-driven operator procedures to ensure safe operation.
  • Check status reports and history files.
  • Adjustment of programmable parameters. Password is needed for both operations and adjustments.

Integrated Control And Monitoring Main Display Screen

When the UPS goes into battery mode, it is vital to ensure that your batteries have enough life to run the system until the generators are available. The Liebert NXL UPS has the ability to monitor the expected run time of the batteries and provide alarms.

Battery Cycle Monitor

The Liebert NXL UPS system firmware collects and retains information on the last 132 events that involved discharging the UPS battery. The battery discharges are categorized by discharge duration, and crucial event details are stored, providing onscreen access to information that affects battery health. Summary information on the total number of events, cumulative ampere hours and the total discharge time since a given date is also stored and available for review. All information may also be collected remotely through the Remote Service Terminal application program.

Liebert IntelliSlot Unity Card Communications Interface Card

The Liebert IntelliSlot Unity communications platform is the next generation of communications interface enhancing the enablement of Vertiv software tools and services, including Trellis, Liebert Nform, and LIFE Services, as well as third-party customer protocols for Vertiv equipment.

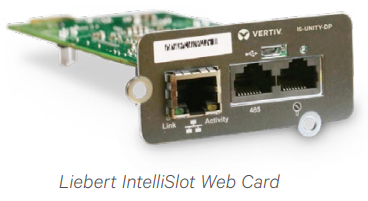

Liebert IntelliSlot Web Card

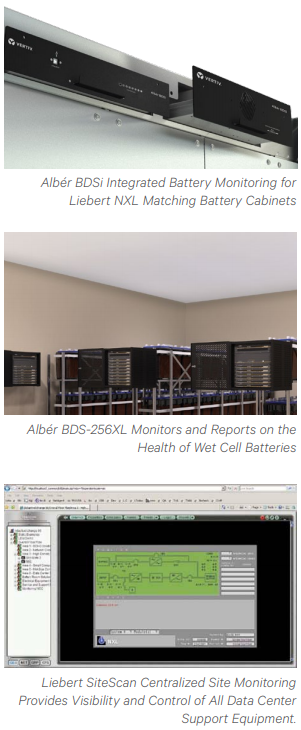

Battery MonitoringBattery Monitoring

Preventing battery failure is essential for delivering maximum availability and effective data center management. Albér battery monitoring technologies continuously monitor battery health, allowing proactive battery replacement and optimized availability.

Continuous Battery Monitoring

  • Liebert NXL UPS battery cabinets are available with factory-integrated Albér battery monitoring.
  • Albér BDS-256-XL monitors and reports on the health of wet cell batteries.

Albér Monitoring Systems

  • Windows-based software for real-time viewing, automatic data collection, data analysis, and report generating.
  • Remote notification to third party systems via Modbus and networks.
  • Scans pertinent battery parameters every 4 seconds, including total voltage, cell voltage, current and temperature.
  • Automatic proactive internal DC resistance tests.
  • Discharges are automatically detected and data saved for retrieval.
  • Trend analysis provides the ability to analyze performance and aid in trouble shooting.
  • Also allow for battery monitoring management by Liebert Services, enabling proper, timely maintenance by local, trained Customer Engineers.

Centralized Monitoring Integration

Liebert SiteScan Web centralized monitoring software offers maximum control, monitoring and visibility to Liebert NXL UPS.

  • Allows information to be collected remotely through the Remote Service Terminal application program.
  • Pre-programmed with the alarms and data recording features critical to system oversight.
  • The Liebert NXL UPS also comes with the ability to output data directly to your network for integration with other monitoring systems.

Real-time Status

Liebert IntelliSlot Web Card monitoring cards for Web, Modbus 485, and Modbus IP provide connection to Liebert SiteScan Web:

  • Provides real-time status updates.
  • Provides tools to analyze data about Liebert equipment.
  • Allows access to current data in graphic programming.

Quality:

Tested To Be The Best

The Liebert Power Systems Test Center

The Liebert Power Systems Test Center for large UPS systems is a state-of-the-art test facility designed to provide customers with pre-installation testing of the performance, interoperability, and efficiency of Liebert UPS modules and systems under a variety of conditions. Located in Delaware, Ohio, the 25,600 square-foot facility, including a 2,600 square-foot customer observation station, is the largest and most comprehensive in the industry.

Testing includes individual modules as well as the complete power system — including large UPS units such as the Liebert NXL UPS, Liebert STS2 static transfer switches and associated switchgear support systems — and is essential to the smooth, rapid installation and commissioning of large power systems. Customers leave the Liebert Power Systems Test Center with documented proof and confidence that their complex power system will operate seamlessly in accordance with businesscritical availability requirements.

Offering you the UPS industry’s largest power systems testing center is another way that Vertiv strives to make sure our product solutions are a perfect match for your critical power requirements.

Typical UPS system verification, testing and test capabilities include but are not limited to the following:

  • DC functions.
  • Transfer functions.
  • Alarms and display verification.
  • Parallel module tests.
  • Module and system Internal fault testing such as component failures or power supply failures.
  • Module and system loading from no load up to 150% load.
  • Unbalanced loading.
  • Battery discharge simulation.
  • Module and system step loading from 0 to 100%.
  • Integrated tests with UPS, flywheels, switchboards, static switches, power distribution, etc.
  • Short circuit tests.
  • Integrated Load Bus Sync testing with multiple UPS systems.
  • Integrated Power Tie testing.
  • Integral switchgear testing.
  • Power quality meters.
  • High resistance ground.
  • Power monitoring.
  • Mimic panels.
  • Current and voltage harmonic analysis.
  • Key interlock systems.
  • PLC or relay based transfer controls.
  • Module and system level full load heat runs.
  • Infrared scanning.
  • Thermal scanning.

Specifications:


Liebert NXL Model Size 1100KVA / 1100KW
Input AC Specification
Input Voltage to Rectifier 480/575/600 VAC 3-phase, 3-wire
Input Voltage to Bypass 480/575/600 VAC 3-phase, 3- or 4-wire
Input Voltage Range +10%, -15% (-30% battery assist)
Input Frequency 60 Hz
Permissible Input Frequency Range 55 to 65 Hz
Input THDi at nominal voltage at full load, % <5% with passive filter
Power Walk-In 1 to 30 (selectable) in 1 sec. Increments
Output AC Specifications
Battery Type VRLA (Valve Regulated Lead Acid) or FLA (Flooded Lead Acid) or Liebert FS Flywheel
Nominal Battery Bus 480 VDC
Battery Float Voltage 540 VDC
Recharge capacity @ full load 55kW
DC Ripple Voltage in Float and Const V Ch. mode, % <1 (RMS value) < 3.4% Vpp
Temperature Compensated Battery Charging Standard (with temperature sensor)
Output Parameters
Inverter Type IGBT PWM Control
Output Power 1100kVA
Output Power 1100kW
Output Voltage 480/575/600 VAC 3-phase, 3- or 4-wire
Output Voltage Regulation, % < 1% (3-phase RMS average)
Output Voltage Regulation (100% Unb. Load) < 2% (3-phase RMS average)
Output Frequency 60 Hz
Output Frequency Regulation, % ± 0.1%
Output THD at Nominal Voltage (Linear Load), % <2%
Output THD at nominal voltage Including a 100kVA Non Linear Load per EN 62040-3, % 2.5% (max)
Efficiency Up to 94%
Transient Recovery Within 5% peak to peak in one line cycle
Voltage Displacement 120 deg +/- 1 deg (50% unbalanced load)
Unbalanced loads current capacity 50% of nominal phase current
Overload 110% for 60 minutes, 125% for 10 minutes, 150% for 1 minute, 200% for 200ms
Physical Characteristics
Width Single Module/1+N: 228.3 in (5,799 mm)
Multi-Module/N+1: 197.5 in (5,017 mm)
Depth Single Module/1+N: 47.2 in (1,199 mm)
Multi-Module/N+1: 47.2 in (1,199 mm)
Height Single Module/1+N: 78.7 in (1,999 mm)
Multi-Module/N+1: 78.7 in (1,999 mm)
Weight, unpackaged, approx Single Module/1+N: 21,800 lb (9,888 kg)
Multi-Module/N+1: 20,050 lb (9,095 kg)
Color Black, RAL 7021
Protection Class, UPS Enclosure NEMA 1, IP 20 (with and without front door open)
Standards
Transportation ISTA Procedure 1H
Safety UL 1778 4th Edition; CSA 22.2 107.3
EMI FCC Part 15, Class A
Surge ANSI C62.41 B3
ENERGY STAR qualifed UPS 480V models

Views:

Quality, Robust Design

Quality, Robust Design

Outstanding Features Make Liebert NXL UPS the New Benchmark in Large-Scale UPS Systems


Liebert NXL UPS Standard Features

  1. 12 pulse phase controlled SCR rectifier
  2. Input filter with fuses
  3. Automatic input filter disconnect for input power factor control
  4. Continuous duty static bypass with internal back feed breaker
  5. Redundant cooling fans with individual failure detection
  6. Top and bottom cable entry
  7. Internal backfeed breaker
  • Two step input current limit
  • Two step battery charger limit
  • Automatic retransfer
  • Back-lit color touch screen display
  • Temperature compensated battery charging/battery load test
  • Latest UL 1778 Rev. 4 Listing and Labeling y DSP controls
  • Safe and easy replacement of air filters and addition of Liebert IntelliSlot cards without shutting down the unit

Designed For Ease Of Installation, Operation And Service

Designed For Ease Of Installation, Operation And Service

Service Options:

Support

Maximizing the performance and efficiency of your data center’s uninterruptible power supply (UPS) and other power distribution systems requires they be properly maintained by factory-trained technicians.

Vertiv, Liebert Services has the only service organization in the world that has been factory trained on Liebert power equipment and is continuously supported and updated by the engineers who built the equipment.

No one knows your Liebert equipment better than we do. We are the service arm of the Liebert equipment manufacturer, we are the factory. Our Customer Engineers have a better knowledge of how to maintain Liebert equipment and integrate it into the overall data center infrastructure support strategy than any service provider.

The Vertiv Critical Difference

Many service organizations can perform basic repair activities and maintain equipment at some level of competency, but Vertiv, Liebert Services can take your critical maintenance to the next level — proactive maintenance that can significantly extend the life of your power systems, decrease your capital investment, optimize system efficiency and effectiveness, and increase overall system availability.

Liebert Services

Documentation:

Download the Vertiv Liebert NXL UPS Datasheet (.PDF)

Pricing Notes:

Veriv Products
Liebert NXL UPS
Vertiv Liebert NXL 250-400 kVA
225-360 kW; 480/575/600 volts Input Voltage; 480/575/600 volts Output Voltage; Up to 94% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 500 kVA
450 kW; 480 volts Input Voltage; 480 volts Output Voltage; Up to 92% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 625 kVA
562.5 kW; 480 volts Input Voltage; 480 volts Output Voltage; Up to 92% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 625 kVA
625 kW; 480/575/600 volts Input Voltage; 480/575/600 volts Output Voltage; Up to 92% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 750 kVA
675 kW; 480/575/600 volts Input Voltage; 480/575/600 volts Output Voltage; Up to 92% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 800 kVA
800 kW; 480 volts Input Voltage; 480 volts Output Voltage; Up to 94% Efficiency; 3 or 4 wire
Contact us for Pricing!
Vertiv Liebert NXL 1100 kVA
1100 kW; 480/575/600 volts Input Voltage; 480/575/600 volts Output Voltage; Up to 94% Efficiency; 3 or 4 wire
Contact us for Pricing!

The Liebert EXS UPS delivers simplicity, reliability and efficiency in a compact three phase power solution. The integrated design and reduced footprint provides maximum power capacity. Robust availability is ensured from the integrated maintenance bypass and advanced monitoring capabilities. Flexibility is enhanced using output distribution and variable battery runtime options. Low TCO is maintained from the high operating efficiency levels and reduced installation costs
