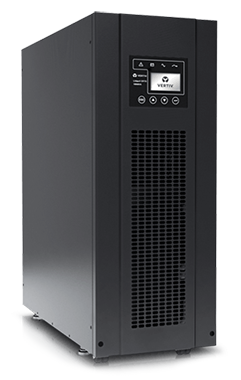

Vertiv Liebert GXT3 UPS
10 kVA Tower - Reliable On-Line Protection In A Compact Tower Package


Vertiv Liebert GXT3 UPS

Veriv Products
Liebert GXT3 UPS
Vertiv Liebert GXT3 1000VA/9000W, 208VAC Voltage
#GXT3-10000T220
Contact us for Pricing!
Vertiv Liebert GXT3 1000VA/9000W, 220/230/240VAC Voltage
#GXT3-10000T230
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Best Suited For:
  • Banking, Financial and Insurance
  • Data Center/Colocation/Hosting
  • Education
  • Manufacturing
  • Transportation
  • Professional Services

Liebert GXT3 tower is a network UPS available in two different 10 kVA versions. As features, it has integrated maintenance bypass, compact tower design, as well as optional extended battery runtime.

Liebert GXT3 10 kVA Tower UPS meets the need for higher power capacities in small spaces. This true online double conversion UPS system is available in two different 10 kVA versions, and features integrated maintenance bypass, as well as optional extended battery runtime. Liebert GXT3 tower is available in both transformer-free and transformer-based versions. The transformer free version can work in either 1/1 or 3/1 configuration, which makes it very flexible. The isolated version is fitted with an output Isolation transformer which allows using it at 110, 120 phase to neutral or 208, 220 phase to phase voltages, for dual input with phases shifted by 180 degrees. Note: The transformer-based version is UL marked only and NOT fit for EU countries, but only for those countries where L-L settings are used.

Liebert GXT3 is designed to deliver higher power capacities for applications with limited floor space

This true on-line double conversion UPS system is available in two different 10000 VA versions featuring an integrated maintenance bypass, as well as optional extended battery back up time.

Liebert GXT3 T230 is the standard version free of integrated isolation transformer which can be configured as either 1/1 or 3/1, providing increased flexibility. The Liebert GXT3 range also offers the possibility of integrated full galvanic isolation with the Liebert GXT3 T220 which houses an output isolation transformer allowing it to be used at 110, 120 phase to neutral or 208, 220 phase to phase voltages, for dual input with phases shifted by 180 degrees.


Communications For Power Monitoring And Control:

Liebert GXT3 offers a variety of communications options providing flexible monitoring and control capabilities.

  • Vertiv IntelliSlot web card providing SNMP and web-based monitoring and control of the UPS
  • Vertiv Nform monitoring system
  • Third-party monitoring systems.

Ideally suited for Mission-Critical Applications such as:

  • LAN & WAN servers
  • Network equipment
  • IP telephony deployments
  • Office telecommunications systems
  • ISDN & frame relay applications
  • Test and diagnostic equipment
  • Micro Processor-controlled equipment
  • Finance applications.

Flexibility:

  • Automatic frequency detection y User replaceable hot-swappable internal batteries
  • Extended back up time with additional battery cabinets
  • Vertiv IntelliSlot communications port
  • Includes Windows-based configuration program
  • Built-in closure signals y Emergency power off (EPO)
  • Parallelable up to three units (2+1).

Higher Availability:

  • Wider input voltage window minimizes battery use
  • Internal automatic and manual bypass
  • Self-diagnostics.

Reduced Total Cost Of Ownership:

  • Standard two-year warranty
  • Compact footprint
  • Batteries shielded from heat generating electronic components
  • Battery cutoff voltage to prevent from overdischarge of batteries.

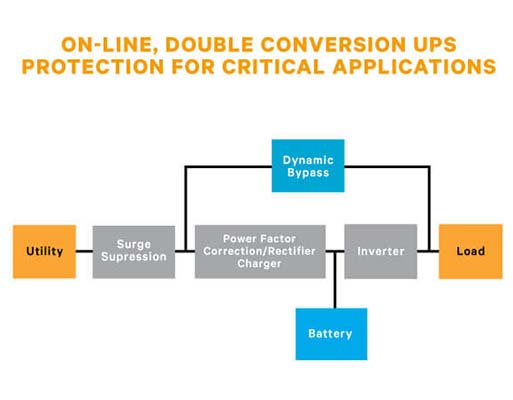

 Online, Double Conversion UPS Protection for Critical Applications

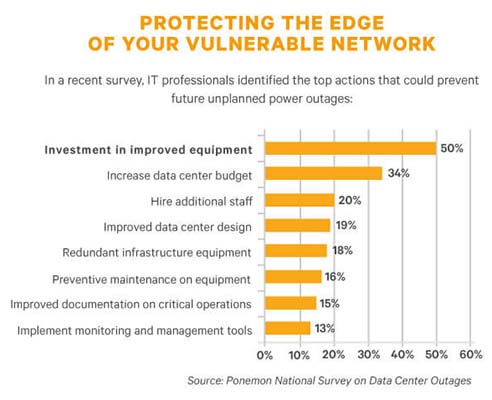

 Protecting the Edge of Your Vulnerable Network

Features and Benefits:

Benefits:

  • 1/1 or 3/1 to adapt to different installation needs (T230 only)
  • 0.9 output power factor to maximize active power provided
  • Parallelable up to 3 units to increase capacity (T230 only)
  • Output isolation transformer for use with dual input with phases shifted by 180 degrees (T220 only)
  • Excellent input and output performances to reduce TCO
  • Battery cutoff voltage to prevent from battery overdischarge
  • Embedded maintenance bypass to maximize uptime
  • Full set of communication options (SNMP/web, Modbus and Relay)

Features:

  • Compact tower design 1/1 and 3/1 possibility (T230 version)
  • Two different versions available (T-free - T230 - and T-based - T220)
  • 0.9 output power factor
  • Parallelable up to 3 units (T230 version)
  • Internal and extended runtime

Specifications:


Liebert GXT3 Specifications GXT3-10000T230 GXT3-10000T220
Power Rating 10000 VA/9000 W
Dimensions, W x D x H - mm 300 x 675 x 800 / 426 x 866 x 1062
Weight - kg 105 140
Input AC Parameters
Voltage Range Without Battery Operation 176-280VAC (for 1/1)
304-485VAC (for 3/1)
100 - 185 ±5VAC (for 1/1)
Frequency Range 50 - 60Hz autoselection
Input Socket terminal block
Output Sockets terminal block
Voltage 220/230/240VAC 208VAC
Waveform Sinewave
Battery Parameters
Type HR 1234W F12 CSB HR1234R or Panasonic UP-RW1245
Quantity x Voltage 20 x 12V
Recharge Time 3 hours to 90% capacity after full discharge with 100% load (Internal Batteries Only)
Environmental
Operating Temperature 0 to 30 °C with 0.9 pf
30 to 40 °C with 0.8 pf
Storage Temperature - 15 to 50 °C
Relative Humidity 0%RH to 95%RH, non-condensing
Operating Altitude Up to 1000m
Audible Noise < 55 dBA, at 1 meter from the rear
< 50 dBA, at 1 meter from the front or sides
Standards and Certifications CE UL 1778, c-UL
RFI/EMI IEC/EN/AS 62040-2 2nd Ed (Cat 2 – Table 6) FCC Part 15, Subpart B, Class A
Surge Immunity EN61000-4-5, Level 3, Criteria A IEC/EN 61000-4-5, ANSI C62.41 (for North America)
Transportation ISTA Procedure 1A ISTA Procedure 1B
Liebert GXT3 Battery Cabinet Specifications GXT3-240TBATT CE
Dimensions, W x D x H - mm 300 x 675 x 800 / 426 x 866 x 1062
Weight - kg 110/140
Batteries
Type Valve-regulated, non-spillable, lead acid
Quantity x Voltage 2 x 20 x 12V
Environmental
Operating / Storage Temperature 0 to 40°F/-15 to 40°C
Relative Humidity 0% to 95%, non-condensing
Maximum Operating Altitude Up to 10000m (40ºC)
Standards and Certifications
Safety / Emissions CE
Transportation ISTA Procedure 1A

Views:

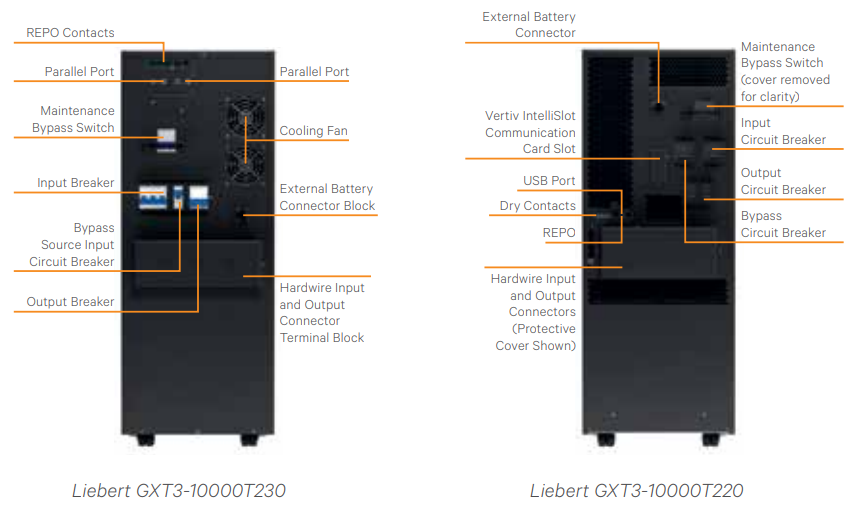

Liebert GXT3 Rear

Documentation:

Download the Vertiv Liebert GXT3 UPS Datasheet (.PDF)
