Vertiv Liebert EXS UPS
10, 15 and 20 kVA/kW, 208/220V Three-Phase Tower

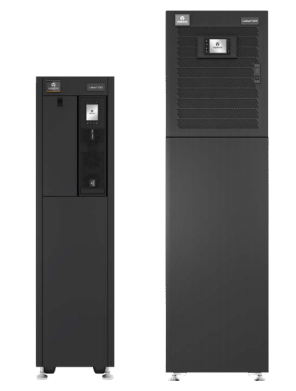

Liebert EXS UPS 10 kVA/kW and 15-20kVA/kW
Liebert EXS UPS 10 kVA/kW and 15-20kVA/kW

Veriv Products
Liebert EXS UPS

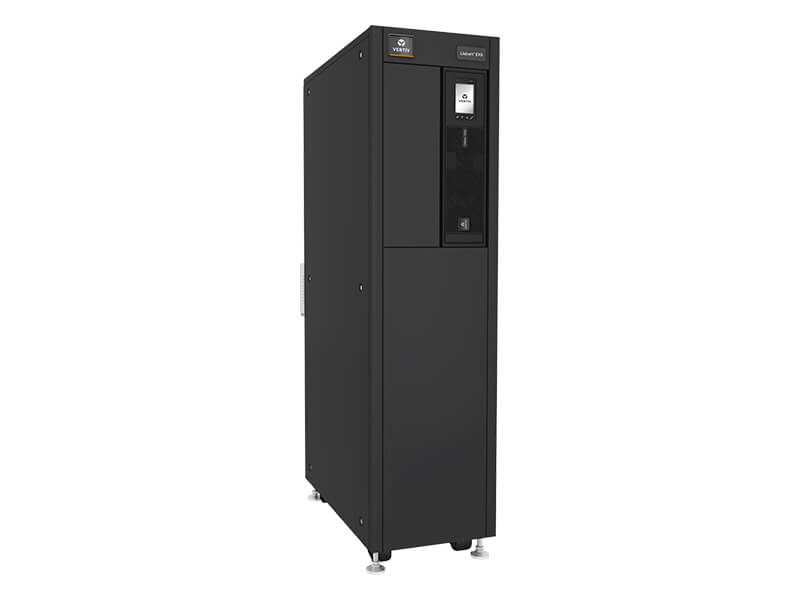

Vertiv Liebert EXS UPS 10kVA, 208V
10kVA, 10kW; 208, 220 Input Voltage; 208, 220 volts Output Voltage; 94 Efficiency; 4W+G Wiring
Contact us for Pricing!
Vertiv Liebert EXS UPS 15-20kVA/kW, 208/220V
15, 20kVA/kW; 208, 220 Input Voltage; 208, 220 volts Output Voltage; 94 Efficiency; 4W+G Wiring
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Best Suited For:
  • Banking, Financial and Insurance
  • Data Center/Colocation/Hosting
  • Education
  • Healthcare
  • Professional Services
  • Retail and Wholesale

The Liebert EXS UPS delivers simplicity, reliability and efficiency in a compact three phase power solution. The integrated design and reduced footprint provides maximum power capacity. Robust availability is ensured from the integrated maintenance bypass and advanced monitoring capabilities. Flexibility is enhanced using output distribution and variable battery runtime options. Low TCO is maintained from the high operating efficiency levels and reduced installation costs.

The Liebert EXS is a monolithic transformer-free UPS that provides on-line protection using a three-phase (in/out), 208/220V design that is optimized in a compact tower cabinet. Flexible configurations offer users a simple, reliable and economical power solution.

Ideally Suited For Powering a Variety of IT Systems:

  • Small data rooms y IT closets, servers and storage
  • Branch, small-midsize IT systems
  • Medical/lab testing equipment
  • VoIP
  • ISDN & frame relay applications
  • Storage systems
  • Security systems

Ideally Suited For Powering a Variety of IT Systems



High Availability

Reliable performance and high availability are derived through a proven on-line, double conversion, transformer-free design.

  • Integrated Maintenance Bypass ensures critical loads operate even during service
  • Short circuit withstand rating up to 30kA
  • Temperature compensating battery charger prolongs battery life
Protection from critical power problems

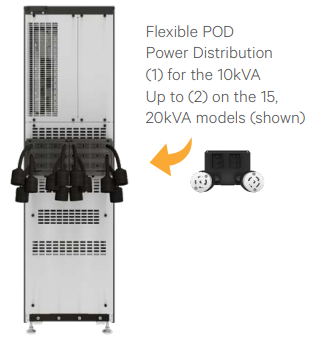

Power Distribution

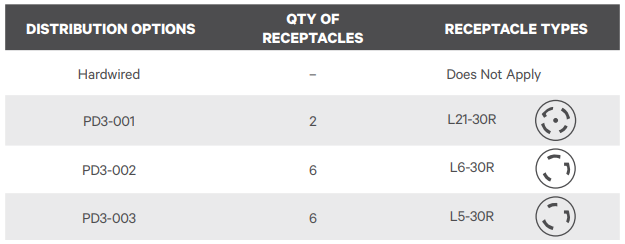

Fast, simple and flexible power distribution is accomplished using either a straight hardwired approach or by applying various distribution PODs (power output distribution) for quick and easy receptacle deployments. In addition, users can mix and match power distribution assemblies. More distribution options pending.

Power Distribution


Intelligent Communications

The Liebert EXS delivers intelligent operation, with the easy and intuitive control panel, network connectivity communications card and optional software monitoring alternatives to ensure visibility, control and peace of mind. Excellent for manned or unmanned locations.

Trellis Power Insight

Trellis Power Insight
Offers an ideal application for monitoring your power system to provide real-time trending for critical UPS performance.


Protect Your Assets – Wherever They are Located

Critical systems and information are everywhere. IT areas can be located in a nearby building or faraway. In some cases, the staff may be unfamiliar with power operations.

In either case, Vertiv has the people and programs to help ensure each step of your journey is successful. For example, Vertiv™ LIFE™ Services experts provide secure, remote monitoring for early detection and response.

Save Now. Save Later.

Control Costs by Managing Capital and Operating Expenses
Consider the Liebert EXS UPS for your next project. From the high operating efficiency (93% in double-coversion mode) to the lower installation, acquisition and maitenance costs, it all combines to deliver a low total cost of ownership. Contact your authorized Vertiv office or partner.

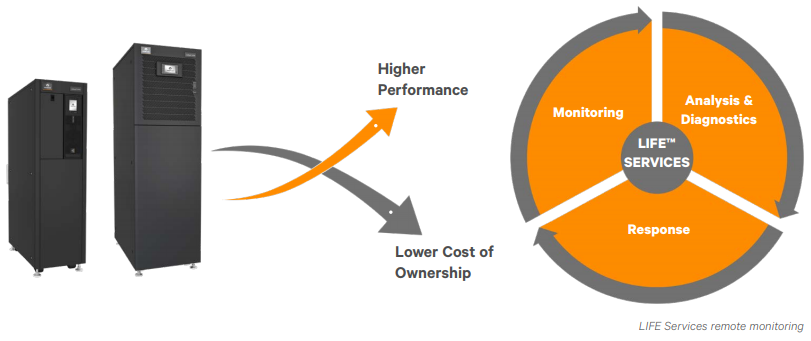

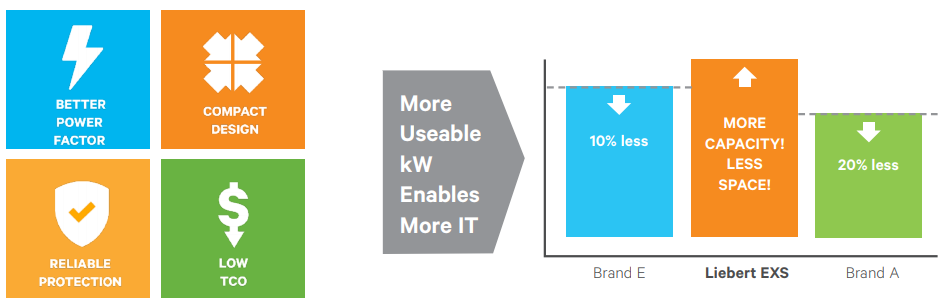

Liebert EXS UPS Performance and Costs Control

Liebert EXS UPS Performance and Costs Control

Features and Benefits:


Key Benefits

  • Integrated solution supports faster deployments
  • Compact, high power density design offers a small footprint
  • Flexible UPS, power distribution and battery arrangements to meet capacity and runtime demands
  • Efficient operation saves energy
  • High power factor delivers more usable power
  • Easy to install
  • Integrated maintenance by-pass option ensures greater availability
  • Intelligent monitoring and management offers improved visibility and control

Features

  • Compact, integrated tower design
  • High power density
  • Efficient double conversion operation up to 94%
  • ECO mode efficiency up to 99%
  • Unity output power factor
  • Flexible battery runtimes
  • Integrated output power distribution options
  • Integrated maintenance bypass
  • Frequency and voltage regulation
  • Intelligent battery management
  • Temperature-compensated battery charging
  • Programmable dry contacts
  • Robust short circuit withstand ratings
  • Network communication card allows connectivity to monitor critical systems
  • Trellis Power Insight available
  • Vertiv LIFE Services remote management capable

Flexible, Efficient Integration

The Liebert EXS utilizes an optimized tower design to deliver reliable power in an efficient, flexible and integrated platform. The solution ensures the critical UPS, bypass, batteries and distribution elements operate cohesively to power vital systems simply, efficiently and effectively.

Integrated Design

The UPS solution provides internal battery, maintenance bypass, and optional receptacle distribution in one, simple package.

Efficient Operation

Save energy every day. The system operates over 93% in double conversion mode and up to 99% in Eco mode.

Standard and Extended Runtime

Achieve your desired runtime by using the standard integrated batteries or elect to add more integrated battery strings.

Fast, Easy Friendly Installation

Pre-assembled, integrated system reduces field work. A pallet ramp offers easy movement. Cable connections and wiring are easily accessible.

Specifications:


Power Rating KVA/KW (PF=1) 10 15, 20
General Specifications
UPS Technology On-Line Double Conversion
Input AC Specification
Input Voltage 208/120, 220/127VAC, 60Hz 3-phase, 4-wire plus ground
Frequency Range 40-70Hz
Output AC Specifications
Voltage 208/120, 220/127VAC, 60Hz 3-phase, 3- or 4-wire plus ground
Power Output Distribution Ports 1 2
Battery Specifications
Battery Technology Valve-regulated lead acid battery
Communications
Options 2 IntelliSlots
Card Compatibility IS-UNITY-DP, IS-UNITY-LIFE, IS-485EXI, IS-RELAY
Protocols Available MODBUS-IP, MODBUS-485, BACNET-IP, BACNET-MSTP, SNMP, HTTP, LIFE Services, Relay Contacts
Environmental Sensors Options
Liebert SN Series Temperature, Humidity, Temperature/Humidity Combination, Contact Closure
Physical Data UPS
Dimensions, W x D x H in (mm) Standard Run Time: 13x25.6x51.2 (335x650x1300)
Extended Run Time: 22.7x25.6x51.2 (576x650x1300)
17.3x29.5x63 (440x750x1600)
Unit Weight lb (kg) Standard Runtime: 437-627 (198.2-284.4)
Extended Run Time: 893-1,093 (405.1-495.8)
734-1042 (333-477)
Environmental
Operating Temperature 32-122°F (0-50°C), with 2% per 1 degC derating required above 40°C 32-104°F (0-40°C)
Relative Humidity 0% to 95%, non-condensing
Operating Altitude 0-3000m (~10,000 ft), no derating 0-1500m (~4920ft), no derating.
1% per 100m derating up to 3000m
Acoustical Noise <55dB
Safety
Safety IEC/EN62040-1; UL/CSA cULus (UL 1778 5th Edition, CSA No.22.2 107.3)
Standard Warranty
Standard Warranty 1 year

Views:

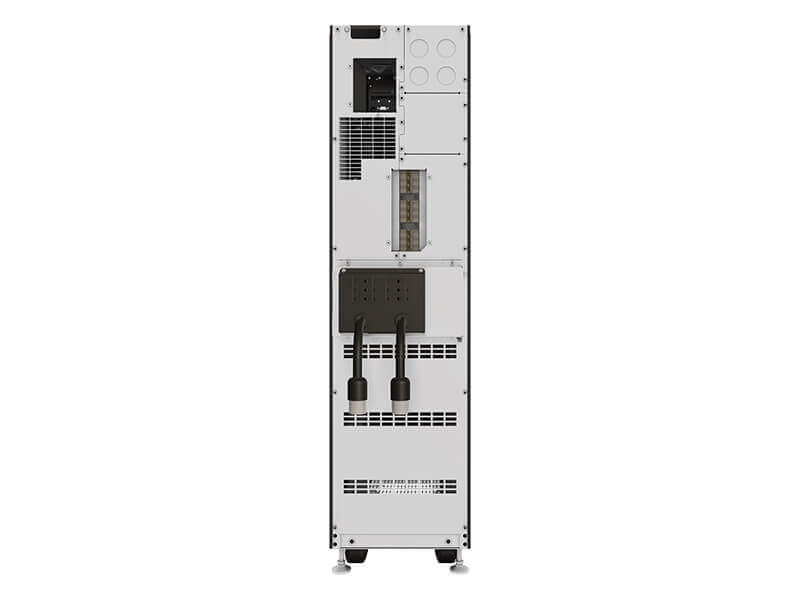

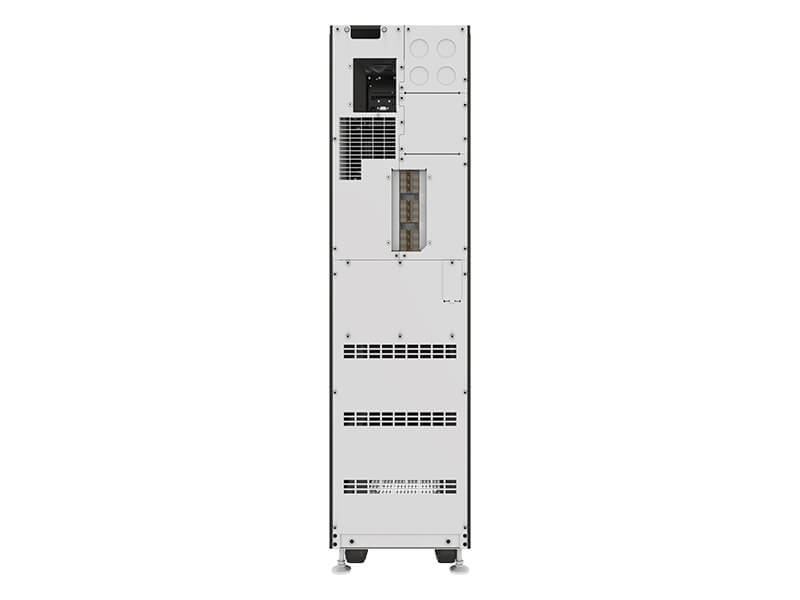

Liebert EXS UPS 10kVA, 208V

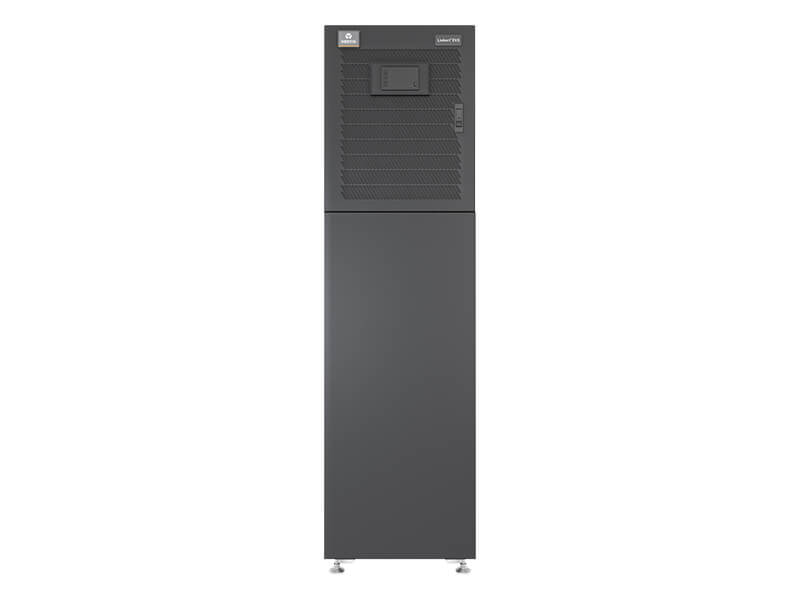

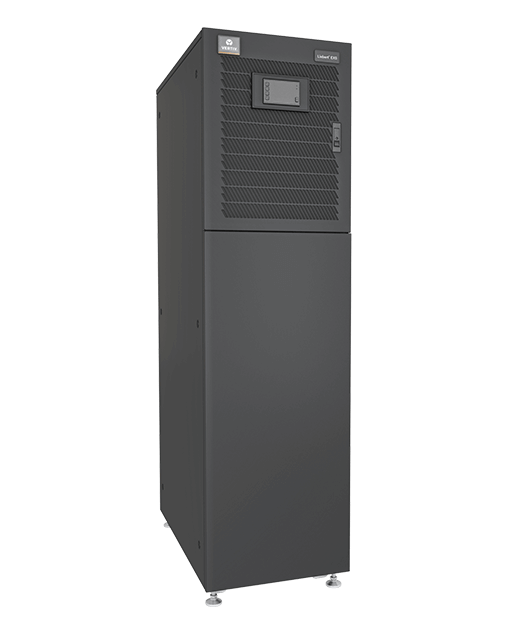

Liebert EXS UPS 15-20kVA/kW, 208/220V
