Vertiv Liebert EXM UPS
10-250 kVA/kW - Efficient, Scalable, Intelligent Power Optimized for Midsize IT


Vertiv Liebert EXM UPS

Veriv Products
Liebert EXM UPS
Vertiv Liebert EXM UPS 208 Volt
10-200kVA/kW; 208V Input Voltage; 208V Output Voltage; 99% Efficiency
Contact us for Pricing!
Vertiv Liebert EXM UPS 480 Volt
50-250kVA/KW; 480V Input Voltage; 480V Output Voltage; 99% Efficiency
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Best Suited For:
  • Banking, Financial and Insurance
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Retail and Wholesale

The Vertiv Liebert EXM UPS provides efficient and economical operation with a flexible power system offering scalable and redundant features optimized for midsize IT and critical power applications.

The Liebert EXM UPS is based on a reliable, double conversion power topology that uses an efficient transformer-free design. Excellent efficiencies of 97% are generated and can be enhanced to 99% using our unique Eco Mode. A unity power factor delivers more capacity in a smaller footprint. Available in a fixed capacity or a scalable, redundant configuration from 10-200kVA/kW in 208V and 50-250 kVA/kW in 480V, each utilizes a modular construction design with optimized ancillary cabinets designed to save the customer footprint and cost. The new touchscreen control panel ensures Status At A Glance convenience, flexible views and multiple security options. Intelligent controls and communications integrate with Liebert Nform, SiteScan and the Trellis Platform as well as 3rd party BMS and DCIM systems. LIFE Services provides 24x7 remote monitoring by our expert staff to improve availability and lower labor costs.


The Liebert EXM UPS is ideal for:

  • Small to midsize IT applications
  • Edge of the network operations
  • Midsize/regional colocation facilities
  • Testing, medical and telecom systems
  • Emergency lighting

A Midsize UPS As Dynamic As Your Needs

Liebert EXM 3-Phase AC UPS

  • 10-250kVA, 208 & 480 Volt Native
  • Unity Power Factor y Up to 99% Efficient
  • Optimized Ancillaries provide Flexible Deployment
  • UL 924 Listed
  • Next Generation Scalable Functionality
  • Next Generation Touchscreen Control Panel
  • 480V Models Qualified for Use with Lithium-ion Batteries and Flywheels

Liebert EXM 3-Phase AC UPS

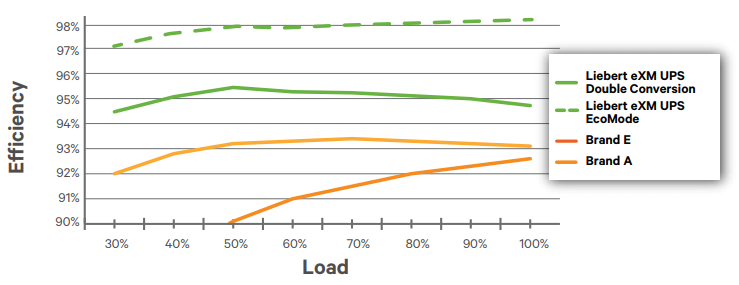

Efficient and Economical So You Can Contol Your Costs

The Liebert EXM UPS was purposefully designed to provide efficient power protection that can meet your operating and capital requirements.

  • Unity Power Factor ensures more power is provided in a smaller footprint, thus increasing system capacity while minimizing cabling and installation costs
  • Delivers high efficiency levels throughout the capacity range y 208 or 480 volt systems
  • Transformer-free design saves space, capital, weight and shipping costs
  • Superior operating efficiencies are realized through both the Eco-Mode option, which performs at 99% and the Double Conversion Mode, which delivers 97% (480V models)
  • ENERGY STAR qualified

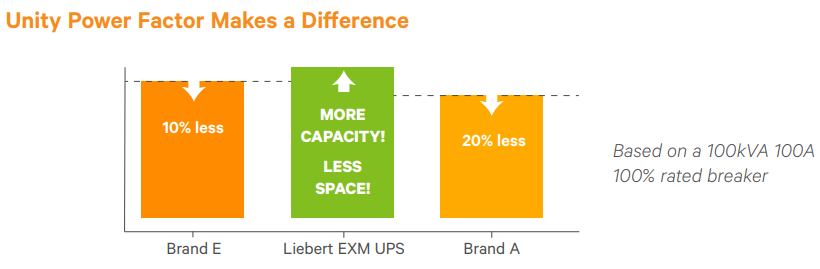

Unity Power Factor Makes a Difference

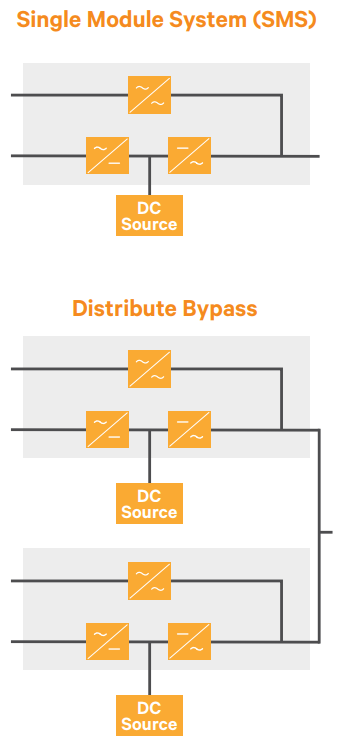

Single Module System and Distribute BypassFlexible Configurations and Deployment Options

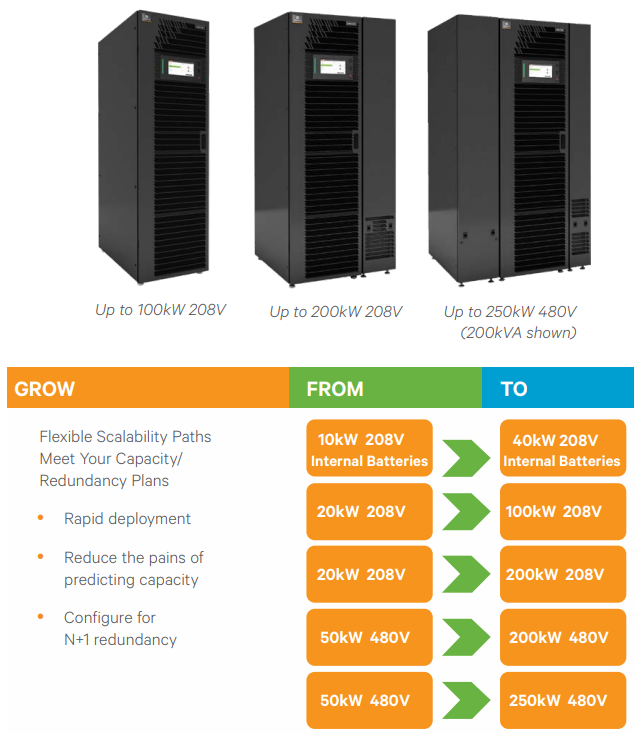

Adapt and Scale with Ease
The flexible, scalable, redundant design of the Liebert EXM UPS is available in many system configurations to ensure optimal power protection.

Adapt and Scale with Ease

Availability Designed In
On-line, double conversion design delivers reliable power and highest levels of uptime.

  • Multi-module configurations enhance availability
  • Internally redundant design reduces switches to bypass
  • Standard 65kA short circuit withstand rating (certain conditions may apply)
  • Easy access to key components
  • High Mean Time Between Failure (MTBF) performance
  • Redundant communication paths ensures reliable control

Capacity, Redundancy, Flexibility

The Liebert EXM UPS provides future-proof scalability along with matching ancillary cabinets to address your power system demands.

  • Maintenance bypass cabinet
  • Bypass and distribution cabinet
  • Battery cabinet (many run time options), Lithium-ion available with 480V models
  • Dual input transformer cabinet
  • Paralleling cabinet (parallel for higher capacity or redundancy).

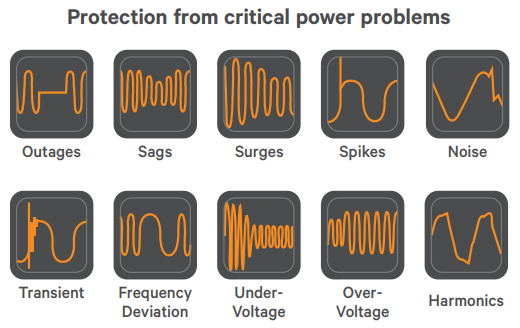

Protection from critical power problems

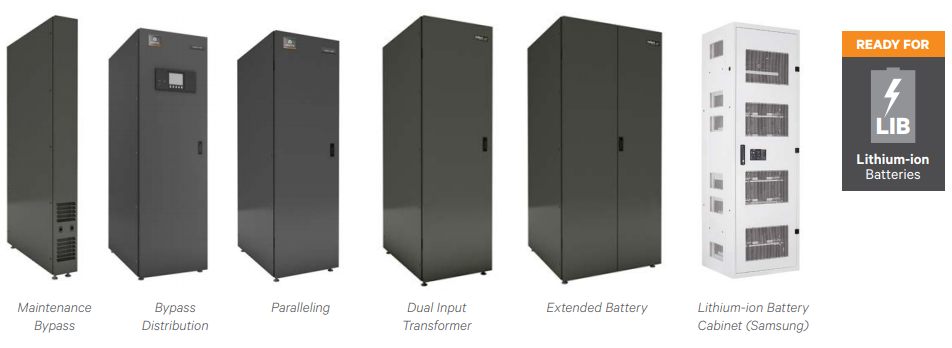

Optimized Ancillaries (various sizes available)

Optimized Ancillaries (various sizes available)

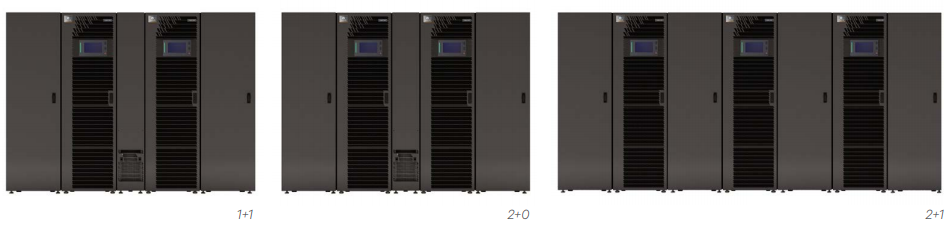

Multi-Module Flexibility

  • Matching Paralleling Cabinet supports up to a 2+1 configuration.
  • Options for up to 4+0 can be supported using third party switchgear.

Multi-Module Flexibility

Intuitive, Intelligent Operation at Every Level

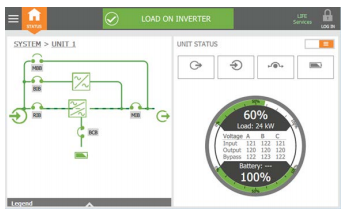

Touch-Screen Control Panel Offers Intelligent Control

  • Intuitive, easy to use to reduce chances of human error
  • Improves productivity by providing information you need
  • Power performance parameters visualized
  • Service and maintenance support at your fingertips
  • Compatible with The Trellis Platform

Touch-Screen Control Panel Offers Intelligent Control

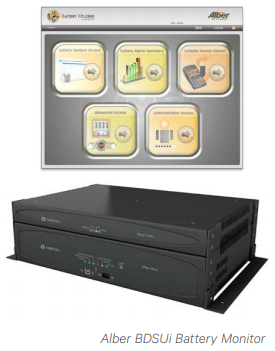

Optional Integrated Albér Battery Monitoring Systems

  • Advance warning of pending UPS battery failures
  • Real-time system and component level visibility
  • Verify the health of the entire battery system
  • Integrated into the battery cabinet

Optional Integrated Albér Battery Monitoring Systems

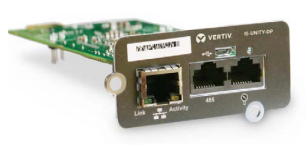

Communications and Environmental Monitoring:

Leverage the capabilities of our Unity Communications card and sensors to easily daisy chain together data inputs.

  • Temperature
  • Humidity
  • Access
  • Leaks
  • More

Communications and Environmental Monitoring


Features and Benefits:

Benefits

  • Efficiency Winning operating efficiencies that remain high across multiple load scenarios.
  • Transformer-free design saves space, capital, weight and shipping costs.
  • Optimized ancillaries provide small footprints for better use of space and lower installation costs.
  • Matching battery cabinets to meet extended runtime.
  • Bypass Cabinet option allows maintenance without shutting down the critical load.
  • Distribution Panel Board option to add more circuits
  • UPSs can be paralleled to obtain more capacity or add system level redundancy.
  • DCIM and BMS ready.
  • Meet rapid deployment schedules

Features

  • Unity Power Factor ensures more power is provided in a smaller footprint, thus increasing system capacity while minimizing cabling and installation costs.
  • Industry leading efficiency rating: 97% for double conversion mode, and 99% for eco mode.
  • Optimized ancillaries provide small footprints for better use of space and lower installation costs.
  • Lithium-ion battery compatible (480V models)
  • Comprehensive, easy to use touchscreen control panel.
  • ENERGY STAR qualified.
  • UL924 listed for Emergency Lighting.
  • Native 208V or 480V
  • Integrated Albér battery monitoring option can prevent pending battery issues, the most common cause of UPS failures.
  • Configure to Delivery option in 4 Days (10-40kVA USA)

Specifications:


  208V Native 208V Native 480V Native
Power Rating – kW/kVA 10, 15, 20, 30, 40 60, 80, 100, 120, 140, 160, 180, 200 50, 100, 150, 200, 250
Internal Battery Supported Yes No No
Input AC Specification
Phase/Power Factor/Freq Range   3 / 0.99 lagging minimum at full load / 40-70 Hz
Input Voltage 208, 220, 4801 , 6001 VAC, 60Hz, 3-phase, 4-wire plus ground 480, 600 VAC, 60Hz, 3-phase, 3-wire plus ground
General Specifications
UPS Technology On-Line Double Conversion
Battery Specifications
Battery Test Type/Battery Technology Online / Valve-regulated lead acid battery / Lithium-ion (for 480V only)
Output AC Specifications
Voltage 208/120, 220/127VAC, 60Hz 3-phase, 3- or 4-wire plus ground 480VAC, 60Hz 3-phase, 3-wire plus ground
Frequency − Hz 60 Hza
Communications
Options 3 Liebert IntelliSlots
Card Compatibility IS-UNITY-DP, IS-UNITY-LIFE, IS-485EXI, IS-RELAY
Protocols Available MODBUS-IP, MODBUS-485, BACNET-IP, BACNET-MSTP, SNMP, HTTP, LIFETM Services, Relay Contacts
Environmental Sensors Options
Liebert SN Series Temperature, Humidity, Temperature/Humidity Combination, Contact Closure
Physical Data UPS Unit Weight lb (kg) Dimensions, W X D X H in (mm) Unit Weight lb (kg) Dimensions, W X D X H in (mm)
10kVA, 15kVA, 20kVA 604 (274) 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)

30kVA, 40kVA 678 (307.5) 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)

50kVA N/A N/A 748 (339) 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)
60kVA 807 (366) 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)

80kVA 881 (399.6) 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)

100kVA 955 (433.1) 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)
842 (382) 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)
120kVA 1221 (553.8) 34.6 x 39.5 x 78.7
(880 x 1000 x 2000)

140kVA 1295 (587.4) 34.6 x 39.5 x 78.7
(880 x 1000 x 2000)

150kVA     936 (425) 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)
160kVA 1368 (620.5) 34.6 x 39.5 x 78.7
(880 x 1000 x 2000)

Physical Data Ancillaries Weight lb (kg) Dimensions, W X D X H in (mm) Weight lb (kg) Dimensions, W X D X H in (mm)
600mm Bypass Distribution Cabinet 550 (250) 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)
N/A N/A
300mm Maintenance Bypass Cabinet 288 (131) 11.8 x 39.5 x 78.7
(300 x 1000 x 2000)
288 (131) 11.8 x 39.5 x 78.7
(300 x 1000 x 2000)
200mm Maintenance Bypass Cabinet 198 (90) 7.9 x 39.5 x 78.7
(200 x 1000 x 2000)
198 (90) 7.9 x 39.5 x 78.7
(200 x 1000 x 2000)
1200mm Battery Cabinet2 N/A N/A 4907 (2226) with HX540 batteries 47.2 x 39.5 x 78.7
(1200 x 1000 x 2000)
880mm Battery Cabinet2 3649 (1656) with HX540 batteries 34.7 x 39.5 x 78.7
(880 x 1000 x 2000)
2962 (1344) with HX300 batteries 34.7 x 39.5 x 78.7
(880 x 1000 x 2000)
600mm Battery Cabinet2 2454 (1114) with HX330 batteries 23.6 x 39.5 x 78.7
(600 x 1000 x 2000)
N/A N/A
320mm Battery Cabinet3 1432 (650) with HX205 batteries 12.6 x 39.5 x 78.7
(320 x 1000 x 2000)
N/A N/A
Lithium-ion Battery Cabinet (Samsung) N/A N/A 1200 (545) with batteries 26 x 24 x 81
(650 x 600 x 2055)
Environmental
Operating Temperature UPS: 32° to 104°F (0-40°C); Battery: 68° to 86°F (20-30°C)
Relative Humidity 0% to 95%, non-condensing
Operating Altitude Up to 3,300 ft. (1,000m) without derating
Acoustical Noise, db, at 39 in. Less than 59 dBA typical, 3.3 ft. (1m) from the unit
Certification
Agency/Certification/Conformance Listed to UL 1778 , UL 924 and CSA certified. Meets current requirements for safe high performance UPS operation. ENERGY STAR® qualified
Warranty Standard 1 year

Views:

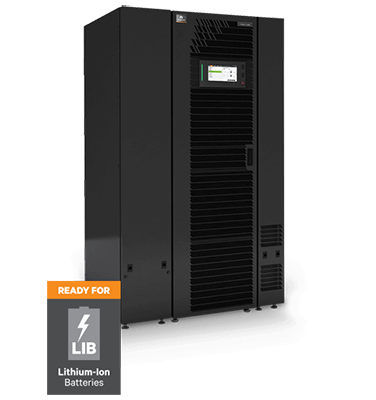

Liebert EXM UPS 208 and 480 Volt

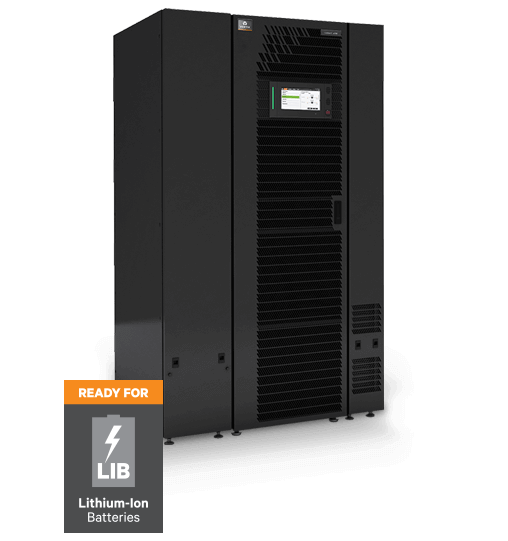

Angle View

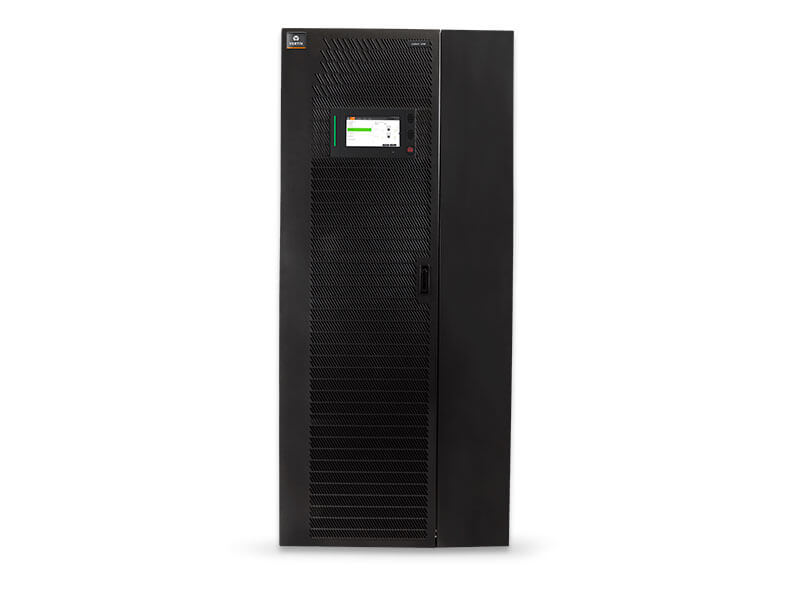

Front View


Critical Services and Support:

Critical Services And Support

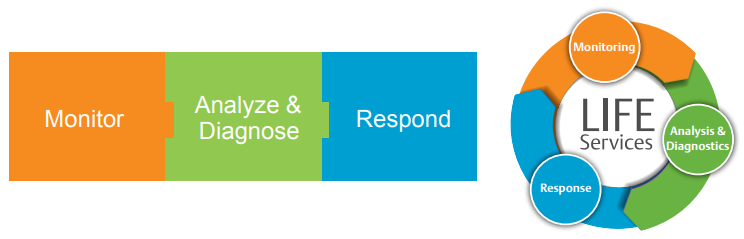

Life Services

  • 24x7 continuous remote monitoring
  • Expert analysis and diagnosis
  • Quick, safe and accurate response
  • Just one of the professional service & support options available to improve uptime, cost control and resource allocation

Life Services

Liebert Services

Maximizing the performance and efficiency of your data center's uninterruptible power supply (UPS) and other power distribution systems requires systems be properly maintained by factory-trained technicians. Trust Vertiv, Liebert Services to take your critical maintenance to the next level-proactive maintenance that can significantly extend the life of your power systems, decrease your capital investment, optimize system efficiency and effectiveness, and increase overall system availability

  • 24x7 critical maintenance response
  • Proactive service, extends system life
  • Improved MTBF and MTTR
  • Local factory trained engineers ready to respond
  • Parts, expertise, satisfaction

Liebert Services
