Vertiv Liebert EXL S1 UPS
625-1200 kVA/kW


Vertiv Liebert EXL S1 UPS

Veriv Products
Liebert EXL S1 UPS
Vertiv Liebert EXL S1 400-500 kVA/kW
400, 500 kVA/kW, 415 volts Input Voltage, 415 volts Output Voltage, Up to 97% double conversion, 4-Wire
Contact us for Pricing!
Vertiv Liebert EXL S1 500-600 kVA/kW
500, 600 kVA/kW, 480 volts Input Voltage, 480 volts Output Voltage, Up to 97% double conversion, 3-Wire
Contact us for Pricing!
Vertiv Liebert EXL S1 625-800 kVA/kW
625, 750, 800 kVA/kW, 480 volts Input Voltage, 480 volts Output Voltage, Up to 97% double conversion, 3-Wire
Contact us for Pricing!
Vertiv Liebert EXL S1 1000-1200 kVA/kW
1000, 1100, 1200 kVA/kW, 480 volts Input Voltage, 480 volts Output Voltage, Up to 97% double conversion, 3-Wire
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Best Suited For:
  • Banking, Financial and Insurance
  • Data Center/Colocation/Hosting
  • Government
  • Healthcare

The Liebert EXL S1 is a monolithic, transformer-free UPS that features optimized, industry leading footprint and power per square foot, excellent operating efficiency, robust electrical protection and intelligent paralleling that optimizes performance at partial load to achieve superior cost savings. Available in single module and distributed bypass configurations. Compatible with lithium ion battery systems.

The Liebert EXL S1 UPS is available in 400-1200 kVA ratings and is optimized for maximum efficiency and power density. It offers the smallest footprint available for its kVA size range and is up to 60% smaller than some competitors. It is also significantly smaller than similar class UPS systems. For the conscientious buyer who needs every square foot to offer a positive ROI, such as for colocation providers, hosting and cloud businesses, the Liebert EXL S1 UPS allows customers to either redeploy the saved space to implement more revenue generating IT equipment or reduce the actual design size of their equipment rooms, thus saving construction costs. Plus, the new Dynamic Online mode enables operating efficiency up to 99% without sacrificing availability. While in this mode, the inverter can instantaneously assume the load and maintain the output voltage within the IEC 62040 Class 1 specification, thus offering the same level of availability typically achieved in a double conversion operating mode. The new touchscreen control panel ensures Status At A Glance convenience, flexible views and multiple security options. Intelligent controls and communications integrate with Liebert Nform, SiteScan and the Trellis Platform as well as 3rd party BMS and DCIM systems. LIFE Services provides 24x7 remote monitoring by our expert staff to improve availability and lower labor costs. The Liebert EXL S1 UPS is fully compatible with the lithium ion battery solutions offered by Vertiv.

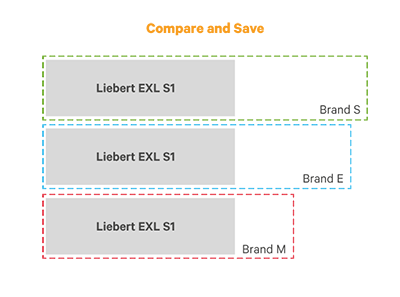

Benefit From The Saving Space Design

The Liebert EXL S1 offers the industry's highest power density per square foot of any large-scale UPS.

You benefit by enabling more productive use of space. In new builds, you can choose to create more room for revenue-generating IT equipment or you might adjust designs and reduce data center construction costs.

Benefit From The Saving Space Design

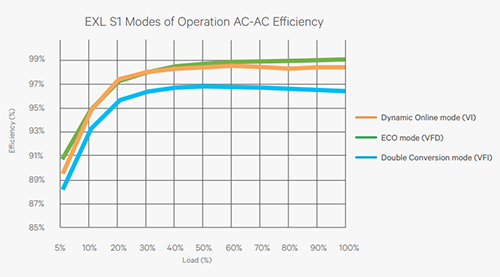

Total Efficiency

From operating savings, to low capital cost, the Liebert EXL S1 provides the optimal solution to maximize return.

For example, the system achieves high operating efficiency across a broad, practical load range. This is important as load capacities ramp up.

Total Efficiency

Dynamic Online mode: No more availability tradeoff with efficiency

Dynamic Online mode is the latest high efficiency mode of operation offered by Vertiv, developed for those that do not want to trade off any level of availability for incremental gains in efficiency.

Dynamic Online mode enables operating efficiency up to 99% without sacrificing availability. In fact, while in this mode, the inverter can instantaneously assume the load and maintain the output voltage within the IEC 62040 Class 1 specification, thus offering the same level of availability typically achieved in a double conversion operating mode.

Dynamic Online mode is therefore able to combine the superior availability of a double conversion operating mode with the excellent energy cost savings of a high efficiency mode for a reduced total cost of ownership.

Dynamic Online mode: No more availability tradeoff with efficiency

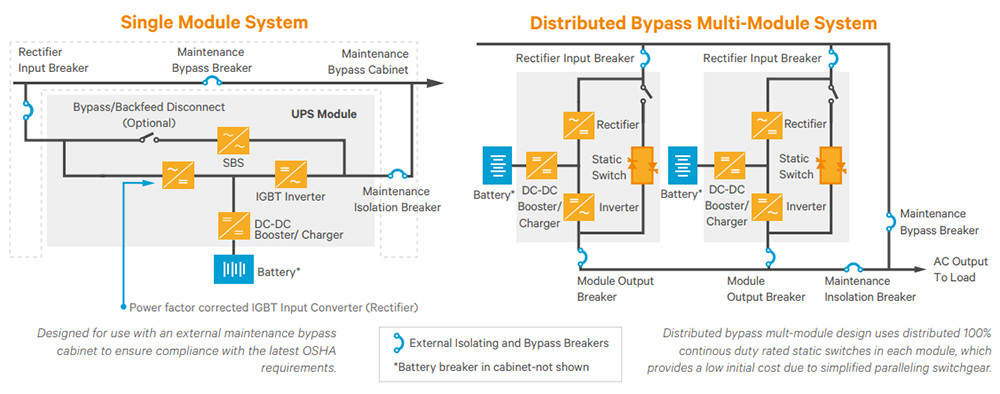

Flexible Configurations

Flexible Configurations

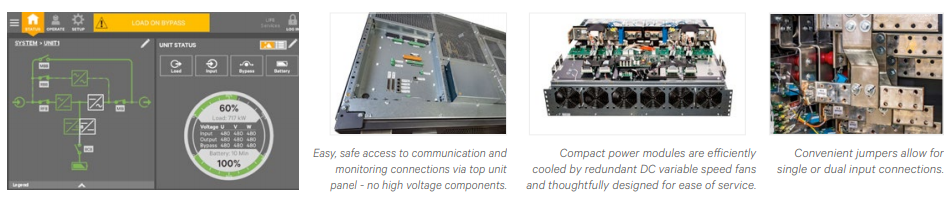

Color Touchscreen Control Panel

  • Multiple access security levels with user-customizable views
  • User-friendly graphical interface and Interactive single-line mimic diagram
  • Dedicated warning/alarm and event log
  • Dedicated measurements page
  • Status at a glance LED light bar indicates warning and alarm conditions

Smart, Convenient Design for the Modern Data Center

  • Compact, yet easy to install and service. Flexible, yet robust and adaptable.

Color Touchscreen Control Panel and Smart, Convenient Design for the Modern Data Center

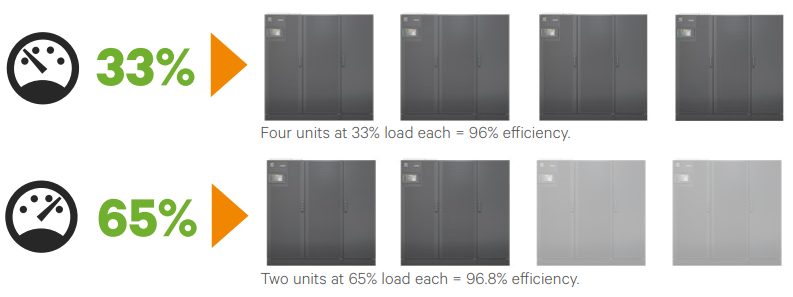

Intelligent Paralleling

Activate for improved efficiency at partial load. The system can automatically adapt capacity to load requirements and then switch non-loaded units to standby mode, while still delivering continued system availability.

  • Maximizes double conversion efficiency
  • Balances system usage
  • Improves component lifespan
  • Enhances energy and TCO reduction

Intelligent Paralleling

Features and Benefits:


Key Benefits

  • Space-saving design minimizes footprint
  • Maximizes power density
  • Maximizes active power capacity
  • Reduces operating expenses
  • Drives down cost of ownership
  • Easy to service and install
  • Flexible configurations
  • Eliminates upstream electrical disturbances
  • Ensures robust power protection
  • Compatible with modern electrical loads
  • Delivers proactive remote services
  • Intelligent and secure control is customizable by user
  • Flexible energy store options

Standard Features

  • Redundant DC variable speed fans
  • Advanced 400/600kW power cores
  • Transformer-free design
  • Up to 99% efficient
  • Unity/Symmetrical power factor
  • 100kA short circuit withstand rating
  • Advanced status-at-a-glance touchscreen control panel
  • Lithium-ion battery compatible
  • Parallel up to 8 units
  • Top and bottom entry cable access
  • Front and top only service access
  • Intelligent paralleling mode
  • Parallel UPS system control and monitoring from a single touchscreen control panel

Optional Features

  • Dynamic Online (VI) mode
  • Single or dual input
  • Dual asynchronous source common mode choke
  • DC battery ground fault detection
  • Centralized or distributed paralleling
  • Seismic anchoring kit
  • Load bus synchronization
  • Backfeed disconnect
  • Bypass current sharing inductors
  • Emergency Power Off
  • Unity communications card allowing dual simultaneous protocols
  • Remote alarm status panel
  • FCC Part 15 compliance

Specifications:


UPS Rating (kVA) 625/750/800 1000/1100/1200
Input AC Parameters
Input Voltage to Rectifier/ Bypass (VAC) 480, 3-phase, 3-wire
Permissible Input Voltage Range +10%, -15%
Input Frequency (Hz) 60 ± 5Hz
Input Power Factor ≥ 0.99
Input Current Distortion (THDi) at Nominal Voltage at Full Load (%) ≤ 3.0
Power Walk-in (seconds) 1 to 90 (selectable in 1 second increments)
Battery & DC Parameters
Battery Type Lithium ion, VRLA (Valve Regulated Lead Acid), VLA (Vented Lead Acid)
Nominal Battery Bus (VDC) / Battery Float Voltage (VDC) 480 / 540
DC Ripple at Float Voltage < 1.0% (RMS value) < 3.4% Vpp
Temperature Compensated Battery Charging Standard with Vertiv Battery Cabinets
Output Parameters
Load Power Factor Supported (Without Derating) 0.7 Leading to 0.4 Lagging
Output Voltage (VAC) 480, 3-phase, 3-wire
Output Voltage Regulation (%) / Output Voltage Regulation (50% Unbalanced Load) (%) < 1.0 (3-phase RMS average) / < 2.0 (3-phase RMS average)
Output Frequency (Hz) 60 ± 0.1%
Output THD at Nominal Voltage (Linear Load) (%) ≤ 1.5 (RMS value)
Output THD at Nominal Voltage including a 100kVA Non Linear Load per IEC 6204-3 (%) ≤ 5.0 (RMS value)
Translent Recovery 100% Load Step / 50% Load Step / Loss of/Return to AC Input Power ±4% / ±2% / ±2% (RMS average for one cycle)
Voltage Displacement (Balance Loads) / Voltage Displacement (50% Balance Loads) 120 deg ±1 deg / 120 deg ±2 deg
Overload at Nominal Voltage and 77°F (25°C) 110% continuously, 125% for 10 minutes, 150% for 60 seconds, 200% for 200 miliseconds
Power
Dimensions with Standard I/O Cabinet, W x D x H
Dimensions with BFD, Sharing Inductor or Common Mode Choke I/O Cabinet, W x D X H
78.8 in x 36.0 in x 79.1 in
109.4 in x 36.0 in x 79.1 in
104.5 in x 36.0 in x 79.1 in
128.1 in x 36.0 in x 79.1 in
Weight with Standard I/O Cabinet, Unpackaged
Weight with BFD, Sharing Inductor or Common Mode Choke I/O Cabinet, Unpackaged
3508 lbs
5665 lbs (max)
4667 lbs
6523 lbs (max)
Color Black, RAL 7021
Protection Class, UPS Enclosure NEMA 1, IP 20 (with and without front door open)
Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Relative Humidity 0% to 95%, non-condensing
Operating Altitude Up to 3300 ft (1000 m) without derating
Communications
Options 2 Liebert Intellislots
Card Compatibility S-UNITY-DP, IS-485EXI
Protocols Available MODBUS-IP, MODBUS-485, BACNET-IP, BACNET-MSTP, SNMP, HTTP, LIFE Services
Standards
Transportation / Safety ISTA Procedure 3B / UL 1778 5th Edition; CSA 22.2 NO 107.3
EMI / Surge IEC 62040-2; FCC Part 15, Class A / ANSI C624.41, Category B3
Seismic / ENERGY STAR IBC 2015, CBC 2016, ASCE, OSHPD / 1000-1200 kVA/kW Qualified, 625-800 kVA/kW Pending

Views:

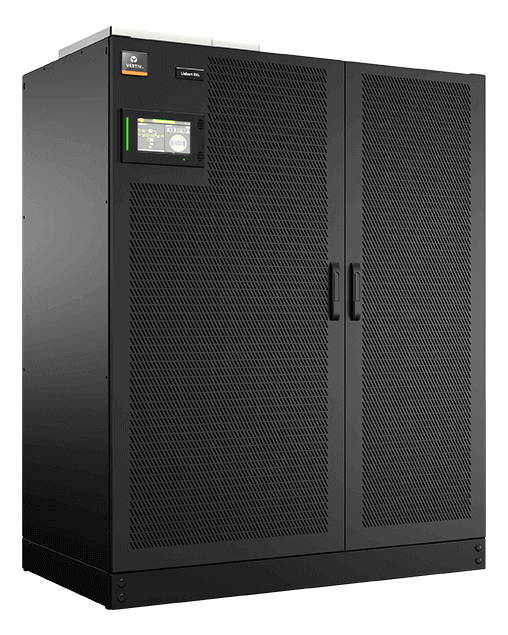

Vertiv Liebert EXL S1 400-500 kVA/kW and 500-600 kVA/kW


Angle View

Front View

Open View

Rear View

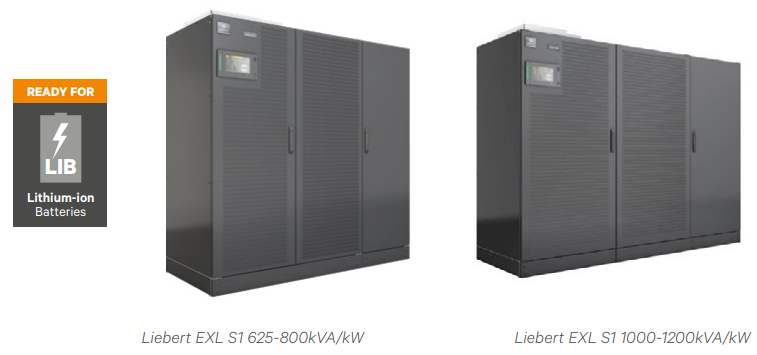

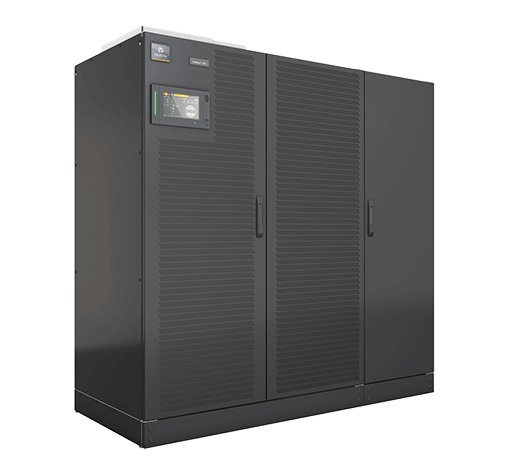

Vertiv Liebert EXL S1 625-800 kVA/kW and 1000-1200 kVA/kW


Angle View

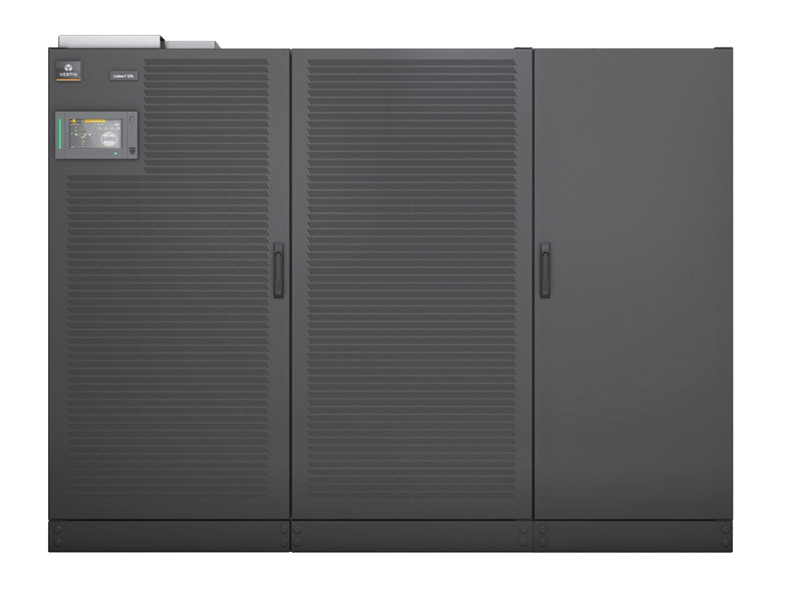

Front View

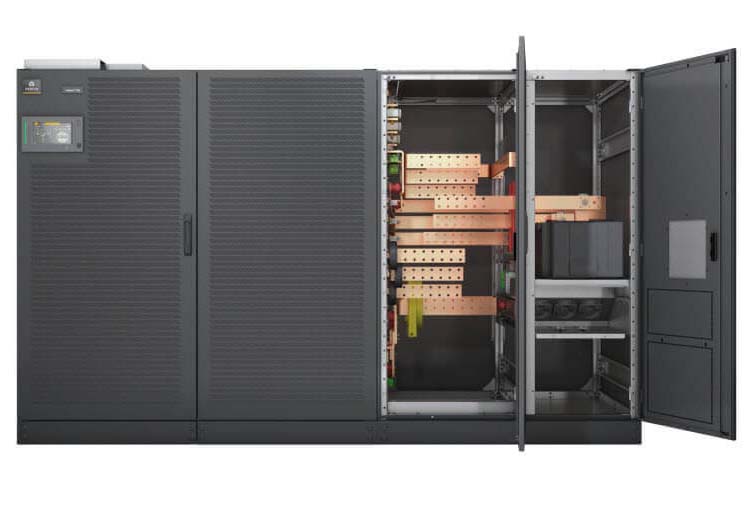

Open View

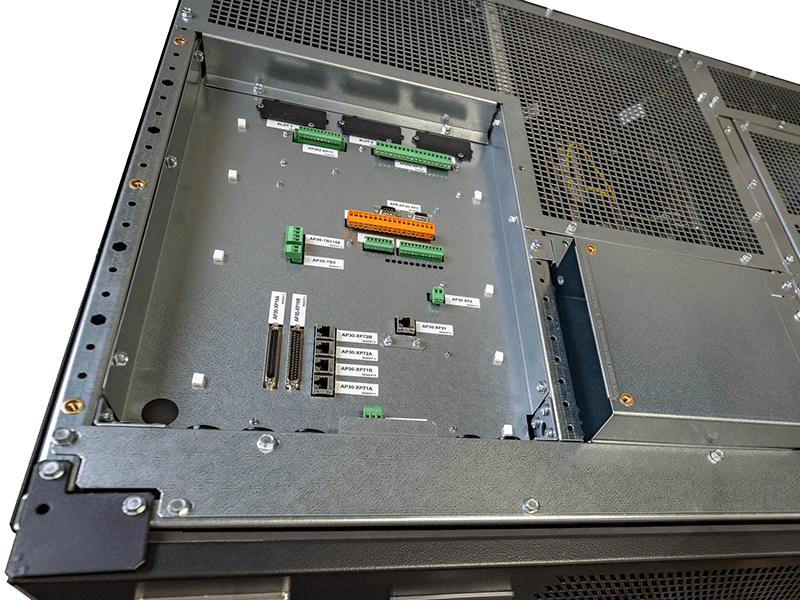

Rear View


Documentation:

Download the Vertiv Liebert EXL S1 Datasheet (.PDF)
