Vertiv EnergyMaster Supervision Module
Site Monitoring for Business-Critical Continuity


Vertiv EnergyMaster Supervision Module

Veriv Products
EnergyMaster Supervision Module
Vertiv EnergyMaster Supervision Module IO
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Supervision modules for battery management, AC management and management of other equipment such as inverters, fire alarms, climate units etc.

Supervision modules for battery management, AC management and management of other equipment such as inverters, fire alarms, climate units etc. By connecting the supervision modules to the site controller they can provide detailed information and alarms regarding the battery backup condition at the telecom site (SM BAT), the condition and status of the telecom site's AC supply and backup generator (SM AC), and the condition and status of auxiliary equipment such as climate units, inverters, building alarms etc (SM IO). Based on this information, site visits and maintenance related to the battery backup, the AC & standby generator and the auxiliary units can be optimized to save both time and money, especially for sites located remotely.​

The Supervision Module for generic monitoring provides detailed information and alarms regarding the condition and status of auxilary equipment such as climate units or building alarms. Based on this information, site visits and maintenance related to the auxiliary units can be optimized to save both time and money, especially for sites located remotely.

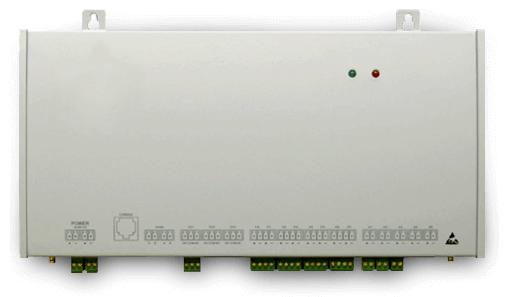

The SM IO is an easy-to-install monitoring device connected to the advanced control unit (ACU) of the DC power system, and the auxiliary units it supervises. It is designed mainly for measuring alarms, voltages and temperatures.

The information and alarms, regarding the auxiliary units on a specific site, can be monitored or checked by means of a simple web browser or specific management software. No additional software is needed and the web browser login to monitor the site is password protected. (Examples of alarms provided by means of the control unit of the power system is specified in the datasheet and/or manual for the specific unit.)

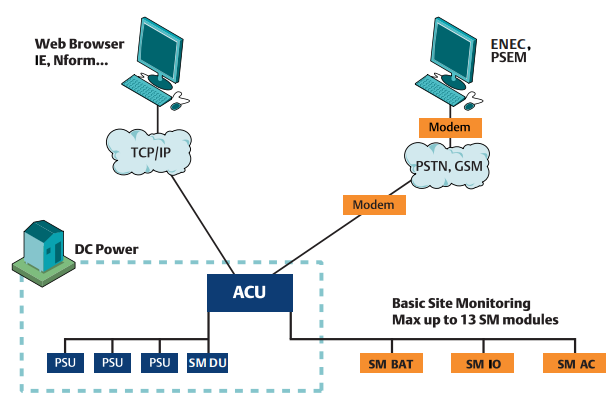

System Layout

Features and Benefits:

Benefits

  • Reduce Operational cost
  • Increased Network Reliability
  • Efficient Energy Network Planning

Features

  • Large number of inputs and outputs
  • Fits all standard sensors RS 485 communication

Monitoring

  • Lower maintenance costs related to equipment monitored and/or controlled by SM IO
  • Higher availability thanks to remote monitoring and control of site equipment

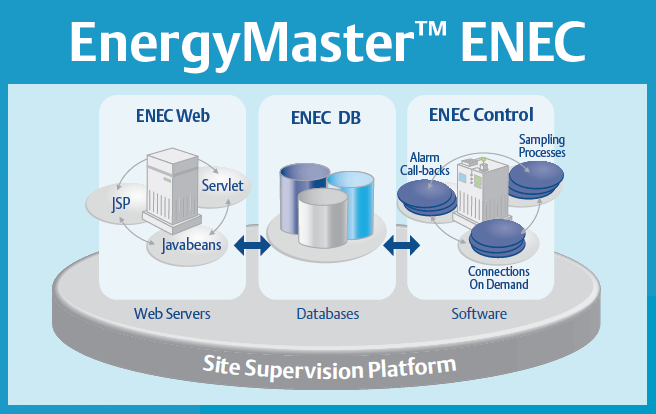

EnergyMaster ENEC Remote Monitoring

Specifications:


EnergyMaster SM IO Specifications
General
Power Supply 18-60 VDC
Power Consumption 4 W
Temperature Range -0ºC to +60ºC / 32ºF to 140ºF
EMC EN 300 386 class B, FCC part 15 class B
Safety IEC 60950, EN 60950, UL 60950
Approvals CE, UL and designed to meet NEBS level 3
Mechanical Data
Dimensions (H x W x D) 150×300×43 mm / 5.9×11.8×1.7 inch
Standard Installation Methods Rack and wall mounted
Weight < 2 kg / 4.4 lbs
Inputs/Outputs
External Communication RS232 / RS485
Inputs 7 Digital / Analog Inputs: 0-10VDC, 0-20mA configurable by jumpers
5 Analog Inputs: 0-75 VDC, 0-20mA, 0-100mV, 1uA/K configurable by jumpers
1 AC Frequency: 40-60 Hz (1.5-15V RMS)
Outputs 3 Relay Outputs: 24VDC / 250VAC, 5A

Documentation:

Download the Vertiv EnergyMaster Supervision Modules IO Datasheet (.PDF)
