Vertiv Desktop UPS, 400-600VA
Battery Backup for Computers, Monitors, Gaming Consoles and other Electronics


Vertiv Desktop UPS, 400-600VA

Veriv Products
Vertiv Desktop UPS
Vertiv Desktop UPS, 400VA (VDSK400)
#VDSK400LV
Contact us for Pricing!
Vertiv Desktop UPS, 600VA (VDSK600)
#VDSK600LV
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Best Suited For:
  • Broadcast and Entertainment
  • Education
  • Professional Services
  • Retail and Wholesale

The Vertiv Desktop UPS provides battery backup for computers, monitors, routers, modems, gaming consoles and other electronics, allowing time for an orderly shutdown during a power outage, or enough time to carry through brief outages. With 5 available receptacles, two surge-only and three surge with battery backed outlets, your devices are protected from potential damage. The desktop-style UPS can also be placed on the floor or wall-mounted. The Vertiv Desktop UPS is an economical and reliable choice to protect your equipment and keep you connected.

  • Up to 25 minutes of runtime for an entry level PC with the 600VA model, and up to 15 minutes for the 400VA model
  • Compact standby 120V UPS y Automatic UPS restart after utility power returns
  • 5 power outlets – three surge and battery protected outlets with two surge-only outlets
  • 3-year full unit coverage including the battery with no-hassle, advanced replacement warranty
  • Co-axial cable surge suppression and telephone/DSL line (RJ11) surge protection connections
  • Illuminated power/battery indicator, with audible alarm when in battery mode

Specifications:


VDSK400LV VDSK600LV
Capacity 400 VA / 240 W 600 VA / 360 W
Unit Dimensions, in. (mm) W x D x H 6.4 x 9.6 x 3.5 (163 x 245 x 90)
Unit Weight, lbs (kg) 7.9 (3.6) 8.6 (3.9)
Input AC
Nominal Voltage 120 VAC
Voltage Range 90-145 VAC
Surge Energy Rating 316 Joules
Input Cord 6 ft. attached with NEMA 5-15P
Output AC (On Utility)
Nominal Voltage 120 VAC
Voltage Range 90-145 VAC
Frequency Range 60 Hz, ±5 Hz
Efficiency >95% at full load
Output AC (On Battery)
Nominal Voltage 120 VAC
Voltage Range Nominal ±8% at onset, ±15% at EOD
Frequency Range 60 Hz, ±1 Hz
Waveform PWM Simulated Sine wave
Battery Type Valve Regulated Lead Acid (VRLA)
Battery Run Time (min) @ 120W Load 5 8
Battery Backed Outlets (3) NEMA 5-15R
Surge-only Outlets (2) NEMA 5-15R
Environmental Requirements
Operating Temperature 32-104ºF (0-40ºC)
Agency
Safety cTUVus (UL 1778, 5th Edition)
RFI / EMI FCC part 15 subpart B, CLASS B
Surge Immunity EN61000-4-5, Level 2 (Line-Neutral)
EN61000-4-5, Level 3 (Line-Ground)
Transportation ISTA Procedure 1A

Views:

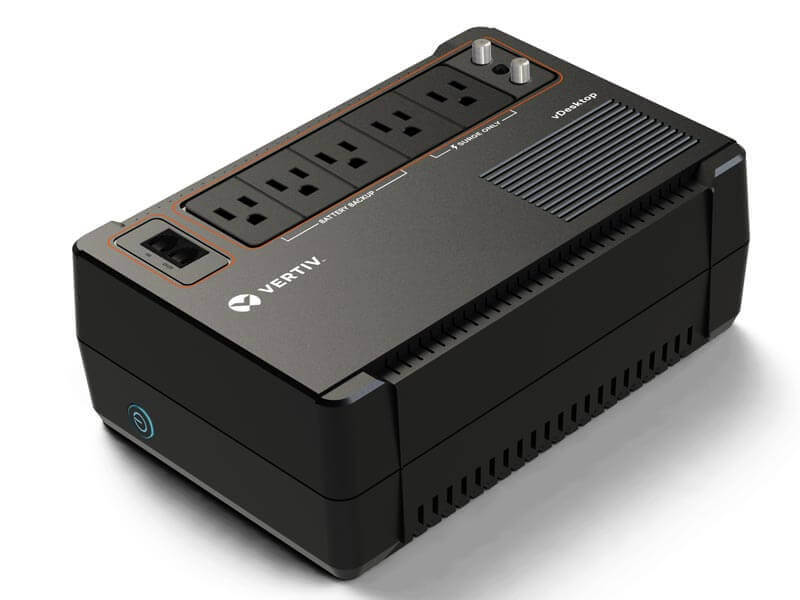

Angle View

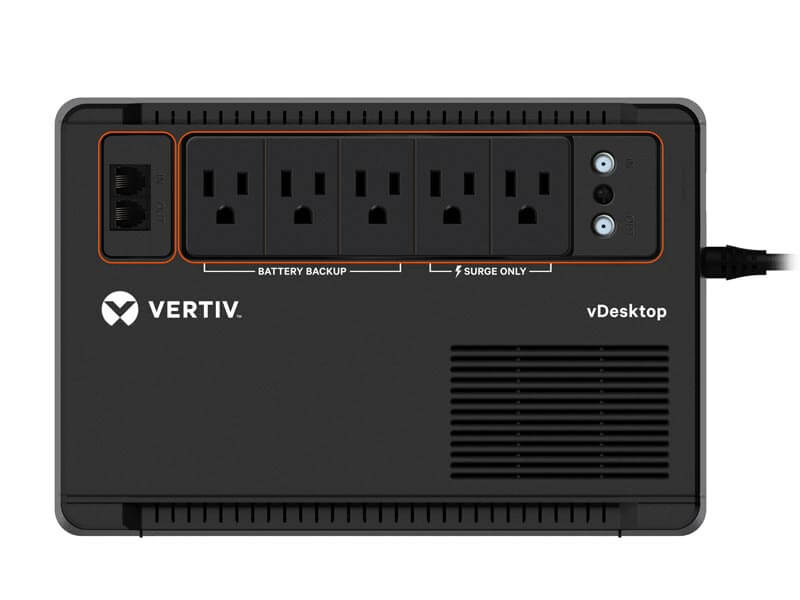

Top View


Documentation:

Download the Vertiv Desktop UPS Datasheet (.PDF)
