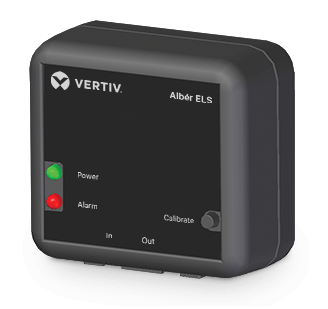

Vertiv Albér ELS2 Sensor Module
Contact us for Pricing!
Vertiv Albér ELS2 Interface Module
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Best Suited For:
  • Chemical/Petrochemical (excl. Oil & Gas)
  • Nuclear Power
  • Oil and Gas
  • Power Generation
  • Power/Gas Transmission and Distribution

The ELS2 Electrolyte Level Sensor is a non-invasive level sensor with incorporated temperature monitoring designed for quick installation and easy set up. This system complies with the NERC PRC-005 requirements for electrolyte level inspection. With this sensor, you eliminate unnecessary remote site visits and will eliminate the required quarterly inspection of battery electrolyte level in your battery string.

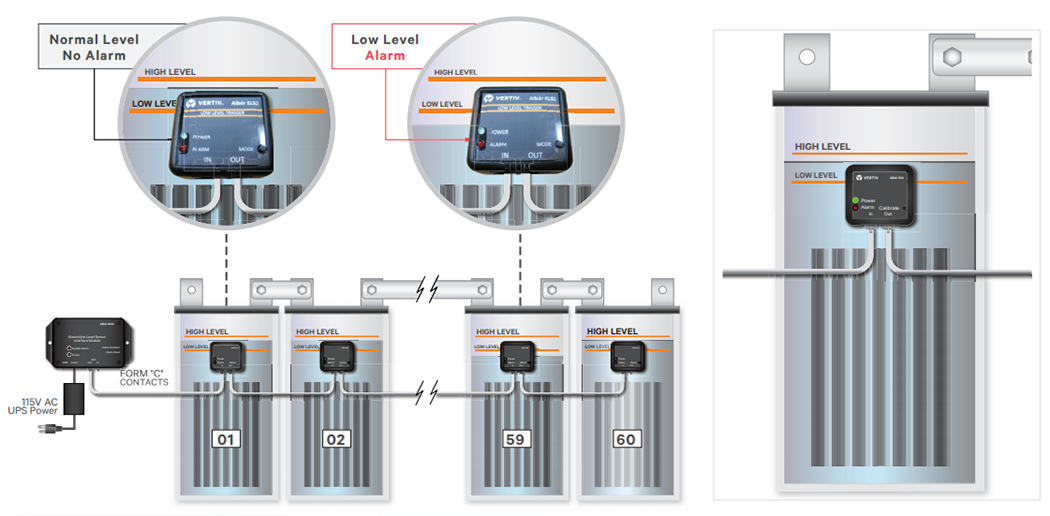

An ELS2 system will include one sensor module to be attached to each cell for monitoring electrolyte level and temperature. Each of these modules will be connected back to a system interface module called the ELSI2 for processing of data for alarm analysis and reporting. The system can operate as a standalone or when combined with the Alber UXIME, provides all battery monitoring features.

System Advantages and Features

  • Three form C contacts for alarm notification: Level alarm, temperature alarm and hardware alarm. Features also a RS-485 interface with Modbus protocol and a USB style B interface
  • Alarms for low and critical low electrolyte levels, cell temperature, sensor attachment failure and hardware malfunction
  • Status indicators on each cell for easy alarm identification
  • Automatic or manual reset for any alarm
  • Designed to work on nonopaque VLA battery cases
  • Automatic calibration, remote alarm reset and quick firmware upgrades
  • Easily integrates into Albér Battery Monitors or building management systems
  • Engineered for quick installation and easy system setup

ELS2 Electrolyte Level Sensor

Features and Benefits:

Alber battery monitoring featureBenefits

Flexibility

  • Modular design easily expands to monitor an unlimited number of strings.
  • Industry standard MODBUS protocol interfaces to third party building management systems via RS-485.
  • Direct communication via a USB service port.

Higher Availability

  • Can be used in conjunction with Alber battery monitors to manage virtually all battery configurations.
  • Infrared sensing technology for improved electrolyte level detection
  • Cell temperature monitoring for notification of corrective action

Lowest Total Cost of Ownership

  • Eliminate the required quarterly inspection of battery electrolyte levels
  • Maintaining the proper electrolyte level extends useful battery life

Ideally Suited For

  • Designed specifically to comply with the NERC PRC-005 requirements for electrolyte level inspection.

Features

  • Three form C contacts for alarm notification
  • Status indicators on each cell for easy alarm identification
  • Automatic or manual reset for any alarm
  • Designed to work on nonopaque VLA battery cases
  • Automatic calibration

Specifications:


Albér ELSi – Interface Module Specifications
LEDs
  • Red LED - System Alarm
  • Green LED - Status/Power
Alarms
  • 3 Form C relay contact ( 2A at 30VDC)
  • Alarm reset button
Input Power
  • 12VDC, 0.75A Max
  • AC-DC Adapter (standalone option)
    • Input 85 – 264VAC, 47 to 63Hz
    • Output 12V DC, 18W max
Communications
  • RS-485 Output
  • USB (Service port)
  • RJ11 to ELS2 Sensors
Dimensions
  • ABS Plastic Housing
  • 4.25"W x 1.45"H x 3.00"D (5.25"W w/ flange)
  • Mounting: Two 0.18” holes
Albér ELS – Sensor Module Specifications
LEDs
  • Red – Low Level Alarm
  • Green – Status / Power
Input Power 12VDC, 300mA via RJ11 from the Interface Module
Communications RJ11 to ELSi2 Interface Module
Dimensions
  • ABS Plastic Housing
  • 1.80” W x 1.59” H x 0.5” D
Safety Approvals
  • UL61010-1
  • EN61010-1
  • IEC61010-1
EMC Approvals
  • EN61326-1
  • FCC part 15 class A
Operating Environment
  • Temperature range: 0°C to 40°C (32°F to 104°F)
  • Humidity range: 0% to 80% RH (non-condensing) at 10°C to 31°C 0% to 50% RH (non-condensing) at 32°C to 50°C
  • For indoor use only

*Sample must not freeze within the measuring cell!
**Viscosity < 100 mPa.s, density < 2 g/cm3

Documentation:

Download the Vertiv Albér ELS2 Electrolyte Level Sensor Datasheet (.PDF)
