Vertiv Albér DMA35
Digital Storage Battery Hydrometers


Vertiv Albér DMA35

Veriv Products
Albér DMA35
Vertiv Albér DMA35 Series Digital Storage Battery Hydrometers
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Best Suited For:
  • Chemical/Petrochemical (excl. Oil & Gas)
  • Nuclear Power
  • Oil and Gas
  • Power Generation
  • Power/Gas Transmission and Distribution

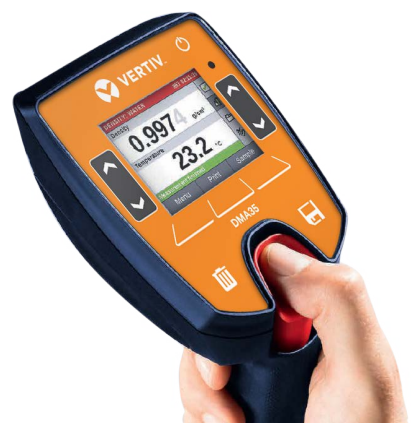

The DMA35 is a handheld, stand-alone digital density meter suitable for use in demanding industrial environments. The Digital Hydrometer saves time and money by automating the collection and reporting processes for hydrometer readings. Measuring specific gravity and electrolyte temperature has always been time consuming and messy.

Fast and Easy Data Transfer

  • The Digital Hydrometer with data logging interface stores up to eight strings of readings (256 readings per string) of specific gravity and acid temperature.
  • Download data to Battery Analysis Software (included) for complete battery records.
  • Easily interfaces with any Alber Cellcorder model from CLC to CRT.
  • Serial and infrared data transfer to computer or Alber Cellcorder.

Lightweight and Durable

  • Easy to use, One hand operation —
    • Dimensions: 9.7"L x 4.1"W x 5.0"H
    • Weight of only 1.5 lbs
  • Splash proof membrane keypad
  • Intuitive and easy to use display

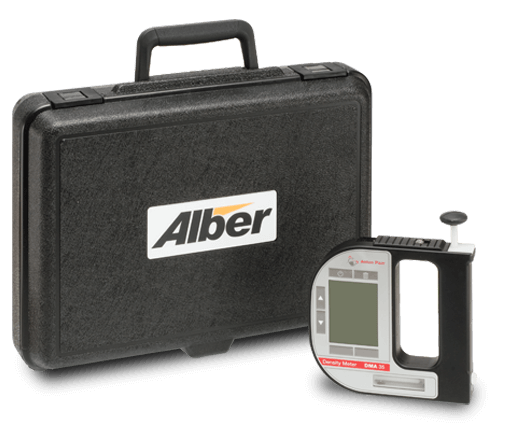

  • Protective carry case

Vertiv Albér DMA35

Continuous battery monitoringFeatures and Benefits:

Benefits

  • Accurate, handheld, digital density meter suitable for use in demanding industrial environments.
  • Measure and record Specific Gravity Units and Temperature in less than 5 seconds
  • Automatically compensates the specific gravity for fluid temperature.
  • Designed to be used on all manufacturers “wet” cells through corner withdrawal tubes or vent caps.

Alber battery monitoring featureFeatures

  • Serial as well as Infrared data transfer to PC or Cellcorder for consolidation of test data
  • The DMA35 with data logging interface stores up to eight strings of readings (256 readings perstring) of specific gravity and acid temperature and download s formatted data to a Cellcorder or a PC for use with the Alber Battery Analysis Software
  • Measure and record SGU/Temp in less than 5 seconds.
  • One hand operation - physical dimensions, 5.5” x 5.4” x 1” and weight of only 13 ounces.
  • Automatically compensates the specific gravity for fluid temperature.
  • Splash proof membrane keypad.
  • If required, all moving parts are field replaceable by the user in 5 seconds.
  • Can be used on all manufacturers "wet" cells through corner withdrawal tubes or vent caps.

Specifications:


Digital Hydrometer Specifications
Measuring range Density: 0 to 3 g/cm3
Temperature: 0 to 40°C*
Viscosity: 0 to 1000 mPa·s
Accuracy Density: 0.001 g/cm3
Temperature: 0.2°C
Repeatability Density: 0.0005 g/cm3
Temperature: 0.1°C
Resolution Density: 0.0001 g/cm3
Temperature: 0.1°C
Operating temperature* -10°C to 50°C (14°F to 122°F)
Supported measuring units Density, Density at reference temperature, Specific Gravity (SG), Alcohol % v/v, Alcohol % w/w, Alcohol US (°Proof), API Gravity, API SG, API Density, °Baumé, H2SO4 % w/w, H2SO4, @ 20°C, °Brix, Extract (°Plato), five programmable custom functions
Data memory 1024 measurement results
Power Supply Three 1.5V LR06 AA alkaline batteries
Sample volume 2mL
Dimensions 245 x 103 x 126 mm (9.7 x 4.1 x 5.0 inches)
Weight 660g (1.5 lbs)
Interfaces IrDA OBEX, LPT (DMA 35 Tag & Log only)
Computer interface Half duplex RS-232C
PC downloading software Albér Battery Analysis Software (BAS)

*Sample must not freeze within the measuring cell!
**Viscosity < 100 mPa.s, density < 2 g/cm3
